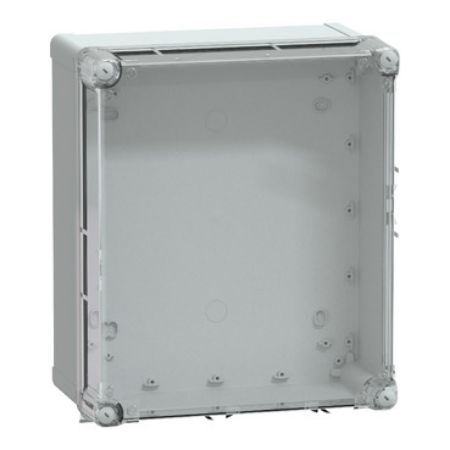

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168mm. Transp.cover H60
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168mm. Transp.cover H60
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168mm. Transp.cover H60
SKU:

NSYTBP342916HT

Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168mm. Transp.cover H60

Old price: $142.78 INC GST
$128.50 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168mm. Transp.cover H60
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Instruction sheet
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with transparent PC cover H60. Int is 325 x 275 x 160 mm. Ext is 341 x 291 x 168 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 168 mm
Width 291 mm
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover high transparent cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 160 mm
Internal height 325 mm
Internal width 275 mm
Product or component type industrial box
Height 341 mm
Removable parts cover by captive screws
Complementary
Colour transparent, grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 1.94 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 30.000 cm
Package 1 Length 36.000 cm
Package 1 Weight 1.924 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 40.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.840 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 135.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 95.000 kg
