Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 opaque PC cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 opaque PC cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 opaque PC cover H20
SKU:

NSYTBP342912

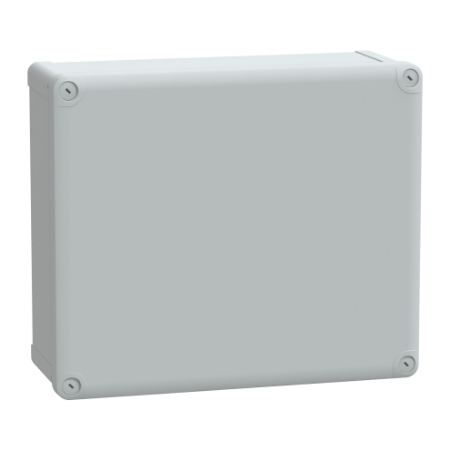

Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 opaque PC cover H20

Old price: $173.69 INC GST
$156.32 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 opaque PC cover H20
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with opaque PC cover H20. Int is 325 x 275 x 120 mm. Ext is 341 x 291 x 128 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 120 mm
Internal height 325 mm
Height 341 mm
Removable parts cover by captive screws
Depth 128 mm
Width 291 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBP
Internal width 275 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Electrical insulation class class II
Material polycarbonate
Net weight 1.16 kg
Standards UL 508 A, IEC 62208
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 30.0 cm
Package 1 Length 35.5 cm
Package 1 Weight 1.57 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 40.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 7.058 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 136.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 102.5 kg
