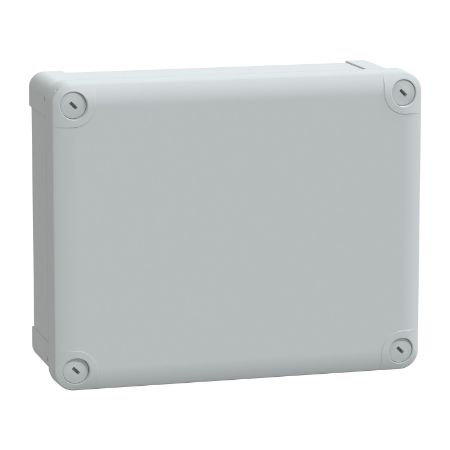

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D194 opaque PC cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D194 opaque PC cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D194 opaque PC cover H20
SKU:

NSYTBP24198

Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D194 opaque PC cover H20

Old price: $53.35 INC GST
$48.02 INC GST
Available for Shipping : 12-Aug-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D194 opaque PC cover H20
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Instruction sheet
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with opaque PC cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 194 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 80 mm
Internal height 225 mm
Height 241 mm
Removable parts cover by captive screws
Depth 87 mm
Width 194 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBP
Internal width 175 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Electrical insulation class class II
Material polycarbonate
Net weight 0.64 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 20.000 cm
Package 1 Length 25.500 cm
Package 1 Weight 699.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 40.500 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.500 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 136.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 128.000 kg
