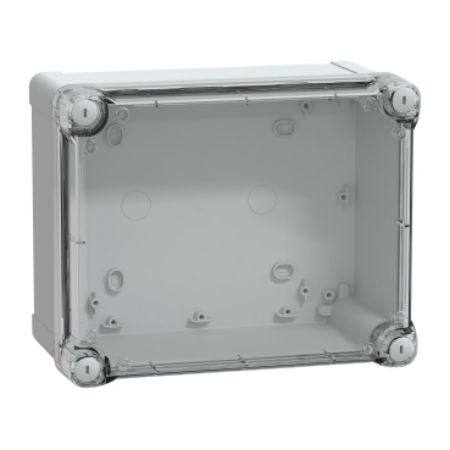

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40
SKU:

NSYTBP241912HT

Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40

Old price: $67.21 INC GST
$60.49 INC GST
Available for Shipping : 20-Aug-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Instruction sheet
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a high transparent cover The enclosure has a nominal height, width, and depth of 241 mm, 194 mm, and 127 mm, respectively The internal dimensions of the box are 225 mm x 175 mm x 120 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 960°C in accordance with IEC 62208 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262) It can be stored in ambient air temperatures ranging from -15 to 60°C and used in ambient air temperature ranging from -25 to 80 °C without affecting its performance The product is UL certified

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 127 mm
Width 194 mm
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover high transparent cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 120 mm
Internal height 225 mm
Internal width 175 mm
Product or component type industrial box
Height 241 mm
Removable parts cover by captive screws
Complementary
Colour transparent, grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 0.82 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 20.500 cm
Package 1 Length 26.000 cm
Package 1 Weight 860.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 40.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.880 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 135.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 93.000 kg
