Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 700x500x250mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 700x500x250mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 700x500x250mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 700x500x250mm, IP66
SKU:

NSYS3X7525H

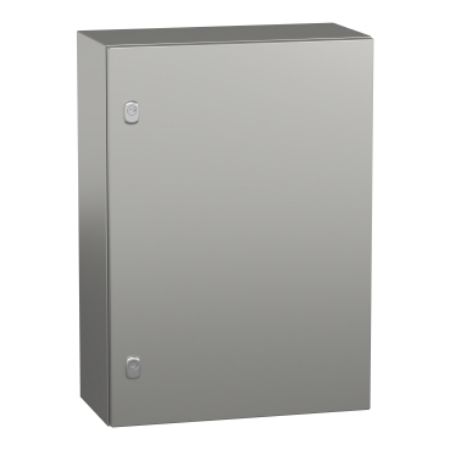

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 700x500x250mm, IP66

Old price: $1,841.62 INC GST
$1,657.46 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 700x500x250mm, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Spacial S3X stainless steel 316L wall-mounting enclosure is a multi-purpose enclosure designed for use in harsh environments It is corrosion-resistant and has an IK10 (IEC 62262) rating for high impact resistance and an IP66 (IEC 60529) rating for dust and water resistance The enclosure has a nominal height, width and depth of 700mm, 500mm and 250mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and consists of a body, a plain door and two locks The door can be opened up to 120° and the opening side can be reversed The door has two lock points with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 17,44kg It is certified by UL 508 type A and CAN/CSA 22, and is compliant with IEC 62208 standards

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 500 mm
Device application multi-purpose
Enclosure nominal depth 250 mm
Range Spacial
Enclosure nominal height 700 mm
Device composition 2 perforated vertical profile drilled: door, 2 lock: door, 1 door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Material body and door: stainless steel 316L, hinge: stainless steel, lock: zamak
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 17.44 kg
Lock type 2 points lock, 3 mm double-bar
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27.000 cm
Package 1 Width 51.000 cm
Package 1 Length 71.000 cm
Package 1 Weight 17.642 kg
Unit Type of Package 2 2
Number of Units in Package 2 21
Package 2 Height 195.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 383.000 kg
