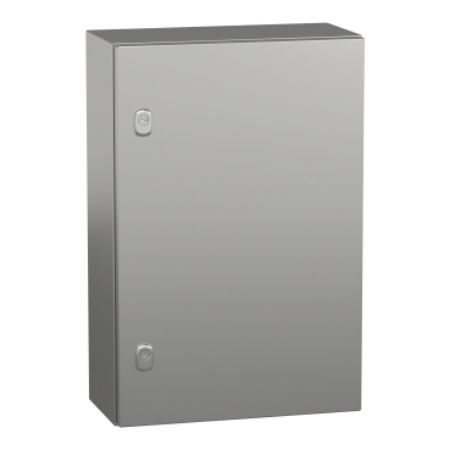

Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66
SKU:

NSYS3X6420H

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66

Old price: $1,144.11 INC GST
$1,029.70 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Declaration of conformity
Instruction sheet
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Spacial S3X is a stainless steel 316L wall-mounting enclosure designed for multi-purpose applications and resistance to corrosion It has a nominal height, width and depth of 600mm, 400mm and 200mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and is designed to withstand high impact with an IK10 (IEC62262) rating and high resistance to dust and water with an IP66 (IEC60529) rating The enclosure consists of a body, a plain door, two locks and two perforated vertical profiles The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 9,52kg It has product certifications from UL 508 type A and CAN/CSA 22

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 400 mm
Device application multi-purpose
Enclosure nominal depth 200 mm
Range Spacial
Enclosure nominal height 600 mm
Device composition 2 perforated vertical profile drilled: door, 2 lock: door, 1 door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Material body and door: stainless steel 316L, hinge: stainless steel, lock: zamak
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 9.52 kg
Lock type 2 points lock, 3 mm double-bar
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 41.500 cm
Package 1 Length 61.000 cm
Package 1 Weight 9.520 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 200.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 298.600 kg
