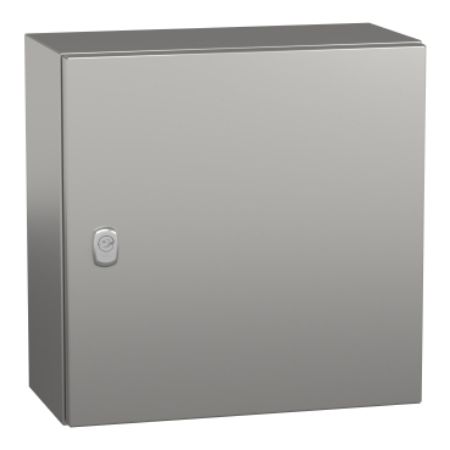

Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 400x400x200mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 400x400x200mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 400x400x200mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 400x400x200mm, IP66
SKU:

NSYS3X4420H

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 400x400x200mm, IP66

Old price: $893.53 INC GST
$804.18 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 400x400x200mm, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Declaration of conformity
Instruction sheet
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Spacial S3X is a wall-mounting stainless steel 316L enclosure designed for multi-purpose applications and resistance to corrosion It is certified with UL 508 Type A and CAN/CSA 22, and has an IK10 (IEC 62262) and IP66 (IEC 60529) rating It has a nominal height, width and depth of 400mm, 400mm and 200mm respectively The enclosure has a Scotch-Brite® brushed surface finish and is composed of a body, a plain door and a 3mm double-bar lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door can be removed for maintenance purposes The net weight of the enclosure is 6,766kg It is designed for use in corrosive and specific hygiene environments

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 400 mm
Device application multi-purpose
Enclosure nominal depth 200 mm
Range Spacial
Enclosure nominal height 400 mm
Device composition 1 door, 1 lock: door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Material body and door: stainless steel 316L, hinge: stainless steel, lock: zamak
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 6.766 kg
Lock type 3 mm double-bar lock
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 41.500 cm
Package 1 Length 41.500 cm
Package 1 Weight 6.766 kg
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 180.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 284.000 kg
