Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
Picture of Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
SKU:

NSYS3X3215H

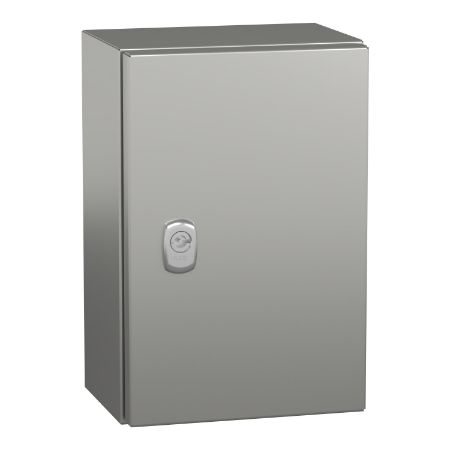

Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x200x150mm, IP66

Old price: $664.40 INC GST
$597.96 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Spacial, Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Declaration of conformity
Instruction sheet
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Spacial S3X is a wall-mounting enclosure made of stainless steel 316L, designed for multi-purpose applications This enclosure has a nominal height, width and depth of 300mm, 200mm and 150mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and a chromium plated lock It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) The enclosure consists of a body, a plain door and a 3mm double-bar lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door can be removed for maintenance purposes The net weight of the enclosure is 3,12kg and it has certifications from UL 508 type A and CAN/CSA 22

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 200 mm
Device application multi-purpose
Enclosure nominal depth 150 mm
Range Spacial
Enclosure nominal height 300 mm
Device composition 1 door, 1 lock: door, 1 body
Product name Spacial S3X
Product or component type compact enclosure
Installation accessory type wall-mounting
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish lock: chromium plated, body and door: Scotch-Brite® brushed
Material body and door: stainless steel 316L, hinge: stainless steel, lock: zamak
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 3.12 kg
Lock type 3 mm double-bar lock
Body type gutter shaped front rail, single piece body, cross-shaped structure
Type of gland plate without gland plate
Removable parts door by hinges
Accessibility for operation front
Environment
IP degree of protection IP66 conforming to IEC 60529
Environmental characteristic specific hygiene, corrosive
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications CAN/CSA 22, UL 508 type A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 21.500 cm
Package 1 Length 32.000 cm
Package 1 Weight 3.120 kg
Unit Type of Package 2 2
Number of Units in Package 2 168
Package 2 Height 180.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 535.000 kg
