SKU:

NSYS3D7525P

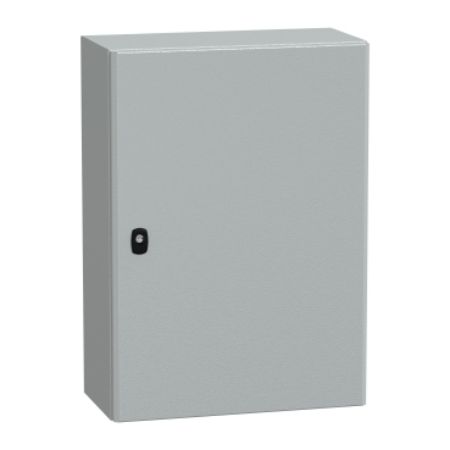

Spacial, Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 700x500x250mm, IP66, IK10

Old price: $480.15 INC GST
$432.14 INC GST
Available for Shipping : 21-Sep-2025
Spacial, Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 700x500x250mm, IP66, IK10
Manufacturer: Schneider Electric
Spacial S3D wall mounted steel enclosure with plain door. 700 x 500 x 250 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

Products specifications

Attribute name Attribute value
Main
Mounting plate description plain
Enclosure nominal width 500 mm
Device application multi-purpose
Enclosure nominal depth 250 mm
Door type plain
Range Spacial
Enclosure nominal height 700 mm
Device composition 1 cable gland plate, 1 door with lock, 1 mounting plate, 1 body
Product name Spacial S3D
Product or component type compact enclosure
Installation accessory type wall-mounting
Type of gland plate standard
Complementary
Colour enclosure: grey (RAL 7035)
Surface finish enclosure: epoxy-polyester powder
Material mounting plate: galvanised steel, enclosure: steel
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Net weight 19 kg
Lock type 3 points lock, 3 mm double-bar
Variant particularity single piece body, gutter-shaped front rail double sheet thickness
Standards IEC 62208
Removable parts mounting plate by fixing element, cable gland plate by screws, door by hinges
Accessibility for operation front
Product certifications BV, DNV, UL, LR, GL, cUL
Environment
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 4X/13
IK degree of protection IK10 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29.500 cm
Package 1 Width 51.500 cm
Package 1 Length 71.500 cm
Package 1 Weight 19.070 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 157.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 243.000 kg
