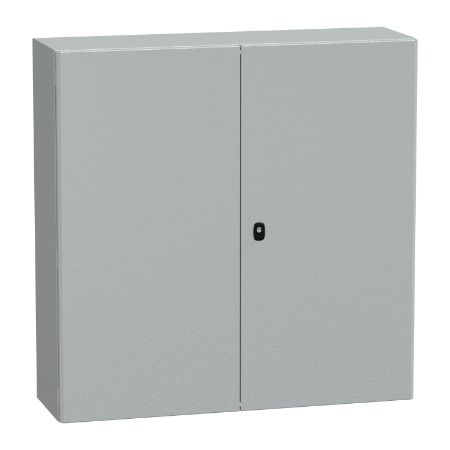

Picture of Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1000x300mm, IP55, IK10
SKU:

NSYS3D101030DP

Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1000x300mm, IP55, IK10

Old price: $1,216.60 INC GST
$1,094.94 INC GST
Available for Shipping : 19-Nov-2025
Product Selector
Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1000x300mm, IP55, IK10
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
Spacial S3D is a multi-purpose wall-mounting enclosure designed for use in harsh environments It is made of steel and has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 64kg The enclosure has a mounting plate made of galvanised steel and is certified by GL, BV, LR, UL, DNV and cUL It has an IK10 (IEC62262) rating and an IP55 (IEC60529) rating The variant particularity includes a single piece body and a gutter-shaped front rail double sheet thickness The accessibility for operation is at the front

Products specifications

Attribute name Attribute value
Main
Mounting plate description plain
Enclosure nominal width 1000 mm
Device application multi-purpose
Enclosure nominal depth 300 mm
Door type plain
Range Spacial
Enclosure nominal height 1000 mm
Device composition 1 mounting plate, 2 door with lock, 2 cable gland plate, 1 body
Product name Spacial S3D
Product or component type compact enclosure
Installation accessory type wall-mounting
Type of gland plate standard
Complementary
Colour enclosure: grey (RAL 7035)
Surface finish enclosure: epoxy-polyester powder
Material mounting plate: galvanised steel, enclosure: steel
Number of doors front face: 2 door(s)
Door opening side reversible (120 °)
Net weight 64 kg
Lock type 3 points lock, 3 mm double-bar
Variant particularity gutter-shaped front rail double sheet thickness, single piece body
Standards IEC 62208
Removable parts mounting plate by fixing element, cable gland plate by screws, door by hinges
Accessibility for operation front
Product certifications cUL, DNV, UL, LR, BV, GL
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 35.000 cm
Package 1 Width 102.000 cm
Package 1 Length 103.000 cm
Package 1 Weight 62.400 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 114.000 cm
Package 2 Width 102.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 200.000 kg
