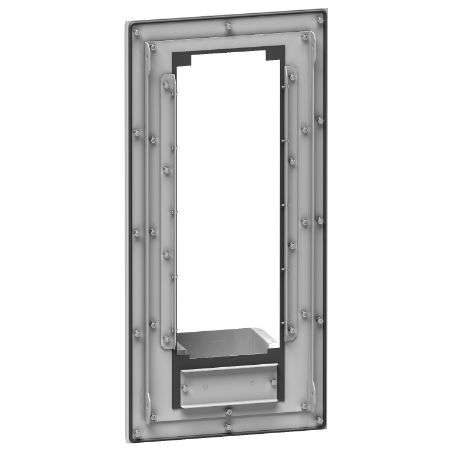

Picture of KIT FLUSH-MOUNTING POUR ATV T4
SKU:

NSYPTDS4

KIT FLUSH-MOUNTING POUR ATV T4

Old price: $987.80 INC GST
$889.02 INC GST
Available for Shipping : 24-Jul-2025
KIT FLUSH-MOUNTING POUR ATV T4
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
Flush mounting kit for variable speed drives in PanelSeT SFN, and Spacial SM and S3D electrical enclosures. It has nominal height and width of 800 and 385 mm respectively. This installation kit allows a quick and efficient installation, while isolating the hot part. It has IP55 ingress protection thanks to the polyurethane seal. Earth continuity is ensured by tightening the M6 nuts combined with pin washers. It is made of steel with epoxy polyester powder finish in RAL 7035 grey color.

Products specifications

Attribute name Attribute value
Main
Mounting location mode 2 : inside enclosure, mode 1 : back of enclosure on mounting plate
Kit composition 1 x cover for fan protection, 1 x fan support, 1 x edge protector profile, plastic. , 1 x instruction sheet, 1 x drilling template, 1 x fixing accessories, 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts
Product specific application process and utilities
Range Spacial
Motor power kW 45 kW 380/480 V, 37 kW 380/480 V, 30 kW 380/480 V, 22 kW 220/240 V, 18.5 kW 220/240 V, 15 kW 220/240 V
Product or component type drive flush mounting kit
Accessory / separate part category mounting and fixing accessory
Range compatibility Altivar variable speed drive ATV340, Spacial SF and SM enclosures, Altivar variable speed drive ATV930, Altivar variable speed drive ATV630
NEMA size 4
Complementary
Colour grey (RAL 7035)
Height 735 mm cut-out: , 800 mm external:
Width 325 mm cut-out: , 385 mm external:
Permanent permissible load 28.7 kg
Depth 151.5 mm wall-enclosure separation:
Net weight 8.102 kg
Services factory installation drive flush mounting kit on enclosure , configuration of enclosurepre-drilled back at requested dimensions
Environment
NEMA degree of protection NEMA 12 conforming to UL 508, NEMA 3R conforming to UL 508, NEMA Type 1 conforming to UL 508
IP degree of protection IP55 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 84.000 cm
Package 1 Width 41.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 8.102 kg
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 146.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 175.000 kg
