SKU:

NSYPFPLMG

Thalassa, Set of 4 polyamid wall mounting lugs for PLM3025 to 108

Old price: $70.84 INC GST
$63.76 INC GST
Available for Shipping : 21-Sep-2025

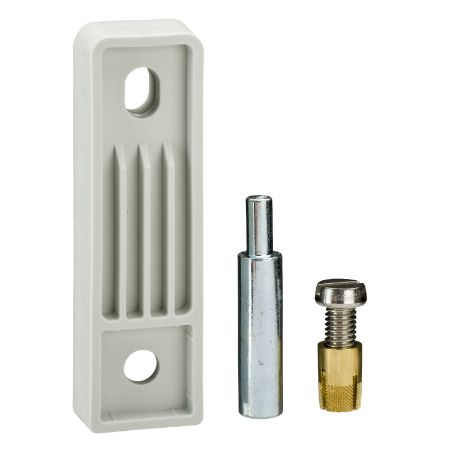

Thalassa, Set of 4 polyamid wall mounting lugs for PLM3025 to 108
Manufacturer: Schneider Electric
Thalassa PLM3025 to 108 Set of 4 polyamide wall mounting lugs. . Multi-purpose application. Mounting on top and bottom, on rear of enclosure. Permanent permissible load is 200 kg vertical, 100 kg horizontal position. polyamide 6 with 30 % fibre glass. Grey RAL 7035.

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Mounting location top and bottom, on rear of the enclosure
Range Thalassa
Device composition 4 lug,  fixing screws
Product or component type wall fixing support
Accessory / separate part category fixing accessory
Range compatibility Thalassa Thalassa PLM
Enclosure nominal dimensions -
Complementary
Colour grey (RAL 7035)
Material polyamide 6 with 30 % fibre glass
Height 1056 mm, 847 mm, 747 mm, 647 mm, 530 mm, 430 mm, 308 mm
Width 852 mm, 636 mm, 536 mm, 436 mm, 430 mm, 330 mm, 255 mm
Permanent permissible load 200 kg vertical position, 100 kg horizontal position
Fixing mode screwed - from the outside location
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 10.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 226.000 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 36.000 cm
Package 2 Width 31.000 cm
Package 2 Length 52.000 cm
Package 2 Weight 17.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 900
Package 3 Height 85.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 220.000 kg
