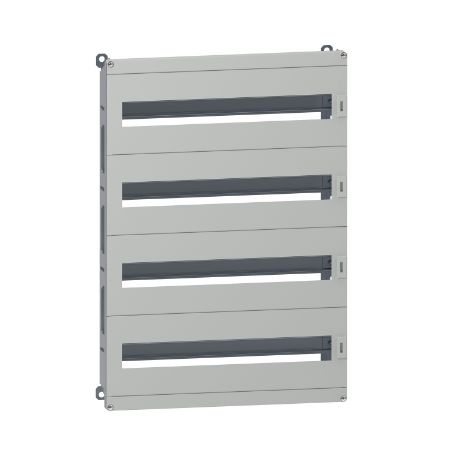

Picture of Modular chassis DLM type for PanelSeT WM enclosure, 88 modules, H700xW500mm.
SKU:

NSYDLM88

Modular chassis DLM type for PanelSeT WM enclosure, 88 modules, H700xW500mm.

Old price: $433.95 INC GST
$390.56 INC GST
Available for Shipping : 12-Aug-2025
Modular chassis DLM type for PanelSeT WM enclosure, 88 modules, H700xW500mm.
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet
DLM chassis for Spacial S3D, Spacial S3X and Spacial CRN enclosures The chassis is to be fixed on front of enclosure and step slide by fixing elements and back with supports location The width is 455mm The height is 653mm The depth is 101,5mm Number of 18mm modules is 88 (1 module = 2 steps = 18 mm) Number of horizontal rows is 4 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 4 The kit is made up of 1 chassis structure, 4 front panels with 35mm DIN rails, 2 finish covers and 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² Anti-corrosion protection is ensured by an polyester powder coating This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Device short name DLM
Device application modular distribution application, multi-purpose
Quantity per set set of 1
Mounting location step slide, front of enclosure
Range Spacial
Device composition 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 4 front panels with 35 mm DIN rail, 1 chassis structure
Product or component type chassis
Accessory / separate part category mounting accessory
Range compatibility Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D
Enclosure nominal dimensions -
Complementary
Adjustment in height from 40 to 85 mm for DIN rail
Colour front panel: grey (RAL 7035)
Type of front plate plain and cut-out plates
Material steel
Height 653 mm
Width 455 mm
Number of cut-out 4 cut-outs
Depth 101.5 mm
Fixing mode by fixing element - on front and back with supports location
Surface finish polyester powder
Total number of 18 mm modules 88
Number of horizontal rows 4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 46.000 cm
Package 1 Length 66.000 cm
Package 1 Weight 6.210 kg
Unit Type of Package 2 2
Number of Units in Package 2 21
Package 2 Height 124.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 143.000 kg
