SKU:

NSYDLM66

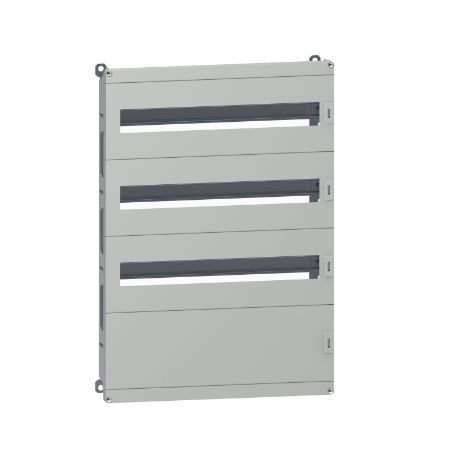

Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 66 modules, H700xW500mm

Old price: $517.55 INC GST
$465.80 INC GST
Available for Shipping : 12-Aug-2025
Spacial, Modular chassis DLM type for SPACIAL WM enclosure, 66 modules, H700xW500mm
Manufacturer: Schneider Electric
Modular chassis DLM type for SPACIAL WM enclosures. H is 700 x W is 500 mm, 66 (18mm) modules. Multi-purpose, modular distribution application. Step slide, front of enclosure mounting. 1 plain front panel with mounting plate incl. Steel made. Grey RAL 7035. 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panel (35 mm DIN rail).

Products specifications

Attribute name Attribute value
Main
Device short name DLM
Device application modular distribution application, multi-purpose
Quantity per set set of 1
Mounting location step slide, front of enclosure
Range Spacial
Device composition 1 plain front panel with mounting plate, 3 front panels with 35 mm DIN rail, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 1 chassis structure
Product or component type chassis
Accessory / separate part category mounting accessory
Range compatibility Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D
Enclosure nominal dimensions -
Complementary
Adjustment in height from 40 to 85 mm for DIN rail
Colour front panel: grey (RAL 7035)
Type of front plate plain and cut-out plates
Material steel
Height 653 mm
Width 455 mm
Number of cut-out 3 cut-outs
Depth 101.5 mm
Fixing mode by fixing element - on front and back with supports location
Surface finish polyester powder
Total number of 18 mm modules 66
Number of horizontal rows 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 46.500 cm
Package 1 Length 66.500 cm
Package 1 Weight 6.410 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 130.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 205.000 kg
