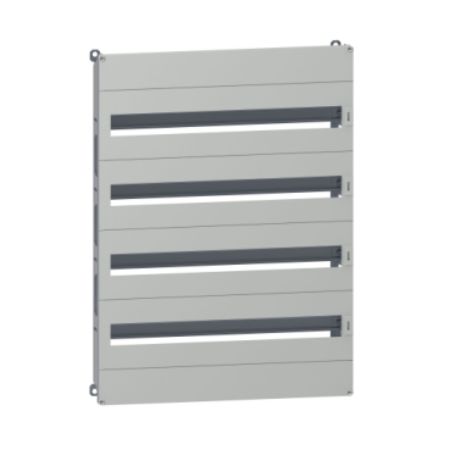

Picture of Modular chassis DLM type for PanelSeT WM enclosure, 112 modules, H800xW600mm.
SKU:

NSYDLM112

Modular chassis DLM type for PanelSeT WM enclosure, 112 modules, H800xW600mm.

Old price: $469.70 INC GST
$422.73 INC GST
Available for Shipping : 12-Aug-2025
Modular chassis DLM type for PanelSeT WM enclosure, 112 modules, H800xW600mm.
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet
Modular chassis DLM type for SPACIAL WM enclosures. H is 800 x W is 600 mm, 112 (18mm) modules. Multi-purpose, modular distribution application. Step slide, front of enclosure mounting. Adjustment in height from 40 to 85 mm for DIN rail. Steel made. Grey RAL 7035. 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panel (35 mm DIN rail).

Products specifications

Attribute name Attribute value
Main
Device short name DLM
Device application multi-purpose, modular distribution application
Quantity per set set of 1
Mounting location front of enclosure, step slide
Range Spacial
Device composition 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 2 finish cover, 4 front panels with 35 mm DIN rail, 1 chassis structure
Product or component type chassis
Accessory / separate part category mounting accessory
Range compatibility Spacial Spacial CRN, Spacial Spacial S3X, Spacial Spacial S3D
Enclosure nominal dimensions -
Complementary
Adjustment in height from 40 to 85 mm for DIN rail
Colour front panel: grey (RAL 7035)
Type of front plate plain and cut-out plates
Material steel
Height 753 mm
Width 555 mm
Number of cut-out 4 cut-outs
Depth 101.5 mm
Fixing mode by fixing element - on front and back with supports location
Surface finish polyester powder
Total number of 18 mm modules 112
Number of horizontal rows 4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 57.000 cm
Package 1 Length 77.500 cm
Package 1 Weight 7.932 kg
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 120.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 172.000 kg
