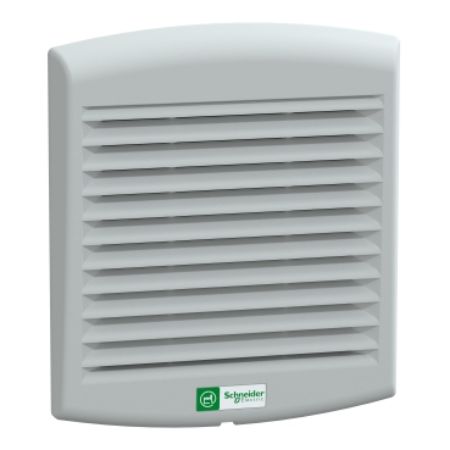

Picture of ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2
SKU:

NSYCVF85M24DPF

ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2

Old price: $105.49 INC GST
$94.94 INC GST
Available for Shipping : 24-Jul-2025
ClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Circularity Profile
Instruction sheet
Environmental Disclosure
Brochure
Catalog
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute name Attribute value
Main
Input voltage 24 V DC
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 80 m3/h
[Us] rated supply voltage 10...27.6 V
Complementary
Noise level 46-49 dB
Bearing type ball
[In] rated current 0.3-0.3 A
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 170 mm external:
Width 150 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 125 x 125 mm
Depth 62 mm external:
Net weight 0.48 kg
Device composition 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 50 Pa flow rate 0 m³/h
Condition of use flow rates depends on the work point, see ProClima software, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided
Power range 7.6 W
Ambient air temperature for operation -10-70 °C
Connections - terminals cable
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 15.500 cm
Package 1 Length 17.500 cm
Package 1 Weight 540.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 28.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 12.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 67.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 111.000 kg
