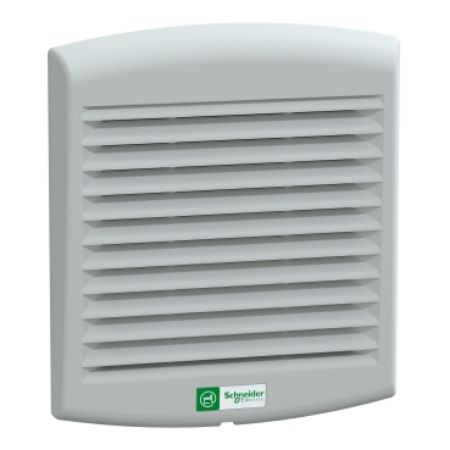

Picture of ClimaSys, ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
SKU:

NSYCVF85M230PF

ClimaSys, ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2

Old price: $168.91 INC GST
$152.02 INC GST
Available for Shipping : 24-Jul-2025
ClimaSys, ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Circularity Profile
Instruction sheet
Environmental Disclosure
Brochure
Catalog
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute name Attribute value
Main
Input voltage 230 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 98 m3/h at 60 Hz, free flow rate with standard filter: 85 m3/h at 50 Hz
[Us] rated supply voltage 175...253 V
Complementary
Noise level 46-49 dB
Bearing type ball
[In] rated current 0.097-0.097 A 60 Hz, 0.121-0.121 A 50 Hz
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 170 mm external:
Width 150 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 125 x 125 mm
Depth 62 mm external:
Net weight 0.78 kg
Device composition 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 50 Pa flow rate 0 m³/h
Condition of use outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software
Power range 17 W 50 Hz, 15 W 60 Hz
Ambient air temperature for operation -20-60 °C
Connections - terminals Faston connector
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 15.500 cm
Package 1 Length 18.000 cm
Package 1 Weight 930.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 21.000 cm
Package 2 Width 33.000 cm
Package 2 Length 43.000 cm
Package 2 Weight 9.526 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 95.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 241.000 kg
