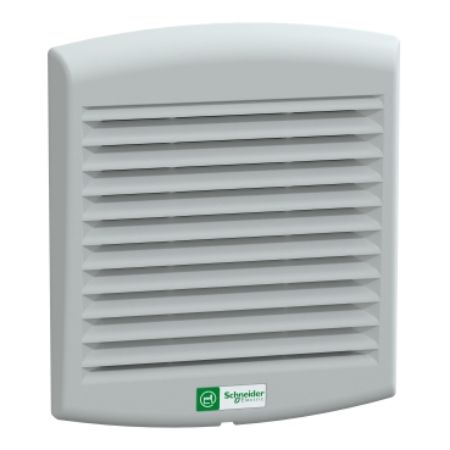

Picture of ClimaSys forced vent. IP54, 85m3/h, 115V, with outlet grille and filter G2
SKU:

NSYCVF85M115PF

ClimaSys forced vent. IP54, 85m3/h, 115V, with outlet grille and filter G2

Old price: $77.33 INC GST
$69.60 INC GST
Available for Shipping : 24-Jul-2025
ClimaSys forced vent. IP54, 85m3/h, 115V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Circularity Profile
Instruction sheet
Environmental Disclosure
Brochure
Product Page Link
Product Data Sheet
This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 50 Pa It has a power range of 16 W 50 Hz and 15 W 60 Hz, and a free flow rate of 79 m3/h at 50 Hz and 92 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -20 to 60°C It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord It has an IP54 degree of protection and a noise level of 46-49 dB The cut-out dimensions of the fan are 125 x 125 mm This fan also comes with an anti-insect filter included

Products specifications

Attribute name Attribute value
Main
Input voltage 115 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 92 m3/h at 60 Hz, free flow rate with standard filter: 79 m3/h at 50 Hz
[Us] rated supply voltage 75...126 V
Complementary
Noise level 46-49 dB
Bearing type ball
[In] rated current 0.179-0.179 A 60 Hz, 0.207-0.207 A 50 Hz
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 170 mm external:
Width 150 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 125 x 125 mm
Depth 62 mm external:
Net weight 0.78 kg
Device composition 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 50 Pa flow rate 0 m³/h
Condition of use filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean, overfrequent filter replacement should be avoided
Power range 16 W 50 Hz, 15 W 60 Hz
Ambient air temperature for operation -20-60 °C
Connections - terminals Faston connector
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 15.500 cm
Package 1 Length 18.500 cm
Package 1 Weight 915.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 21.000 cm
Package 2 Width 33.000 cm
Package 2 Length 43.000 cm
Package 2 Weight 9.526 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 105.000 cm
Package 3 Width 100.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 242.000 kg
