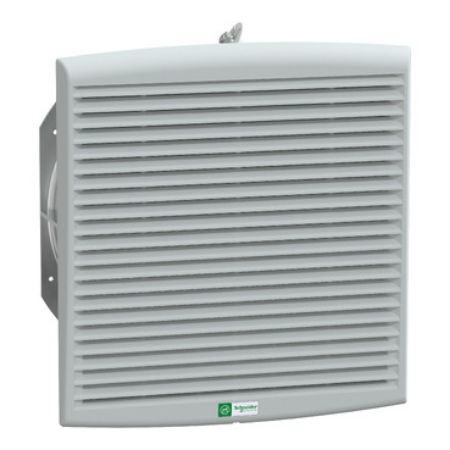

Picture of ClimaSys forced vent. IP54, 850m3/h, 115V, with outlet grille and filter G2
SKU:

NSYCVF850M115PF

ClimaSys forced vent. IP54, 850m3/h, 115V, with outlet grille and filter G2

Old price: $477.40 INC GST
$429.66 INC GST
Available for Shipping : 12-Aug-2025
ClimaSys forced vent. IP54, 850m3/h, 115V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Circularity Profile
Instruction sheet
Environmental Disclosure
Brochure
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 145W 50 Hz, 182W 60 Hz. Free flow rate with standard filter of 944 m3/h at 50 Hz and 983 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute name Attribute value
Main
Input voltage 115 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 944 m3/h at 60 Hz, free flow rate with standard filter: 983 m3/h at 50 Hz
[Us] rated supply voltage 103...122 V
Complementary
Noise level 77-78 dB
Bearing type ball
[In] rated current 1.6-1.6 A 60 Hz, 1.279-1.279 A 50 Hz
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 336 mm external:
Width 316 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 291 x 291 mm
Depth 162 mm external:
Net weight 4.1 kg
Device composition 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 170 Pa flow rate 0 m³/h
Condition of use surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly
Power range 182 W 60 Hz, 145 W 50 Hz
Ambient air temperature for operation -15-60 °C
Connections - terminals terminal block
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.500 cm
Package 1 Width 33.000 cm
Package 1 Length 43.000 cm
Package 1 Weight 4.608 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 96.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 124.000 kg
