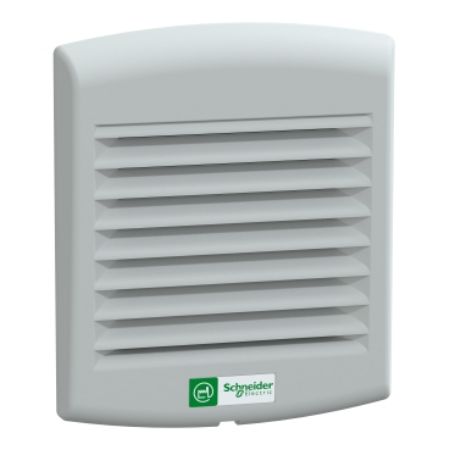

Picture of ClimaSys forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2
SKU:

NSYCVF38M230PF

ClimaSys forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2

Old price: $215.50 INC GST
$193.95 INC GST
Available for Shipping : 02-Nov-2025
ClimaSys forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Circularity Profile
Instruction sheet
Environmental Disclosure
Brochure
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 4.5 W 50 Hz, 4.8 W 60 Hz. Free flow rate with standard filter of 38 m3/h at 50 Hz and 39 m3/h at 60 Hz. 137 x 117 x 49 mm. Cut-out dimensions of 92 x 92 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute name Attribute value
Main
Input voltage 230 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 39 m3/h at 60 Hz, free flow rate with standard filter: 38 m3/h at 50 Hz
[Us] rated supply voltage 150...250 V
Complementary
Noise level 40-41 dB
Bearing type ball
[In] rated current 0.17-0.17 A 60 Hz, 0.16-0.16 A 50 Hz
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 137 mm external:
Width 117 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 92 x 92 mm
Depth 49 mm external:
Net weight 0.22 kg
Device composition 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 29 Pa flow rate 0 m³/h
Condition of use overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature
Power range 4.8 W 60 Hz, 4.5 W 50 Hz
Ambient air temperature for operation -10-70 °C
Connections - terminals cable
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 12.000 cm
Package 1 Length 14.500 cm
Package 1 Weight 280.000 g
Unit Type of Package 2 2
Number of Units in Package 2 34
Package 2 Height 60.000 cm
Package 2 Width 40.000 cm
Package 2 Length 28.000 cm
Package 2 Weight 10.940 kg
Unit Type of Package 3 3
Number of Units in Package 3 272
Package 3 Height 68.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 100.000 kg
