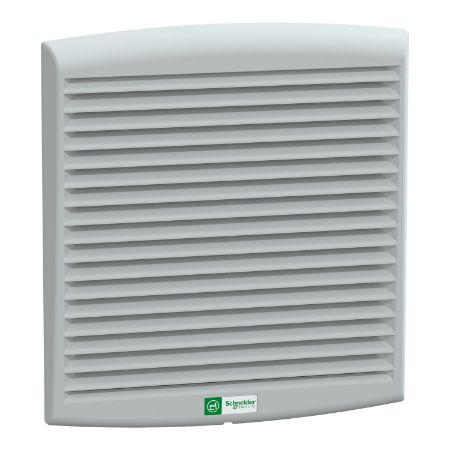

Picture of ClimaSys, ClimaSys forced vent. IP54, 300m3/h, 230V, with outlet grille and filter G2
SKU:

NSYCVF300M230PF

ClimaSys, ClimaSys forced vent. IP54, 300m3/h, 230V, with outlet grille and filter G2

Old price: $392.21 INC GST
$352.99 INC GST
Available for Shipping : 24-Jul-2025
ClimaSys, ClimaSys forced vent. IP54, 300m3/h, 230V, with outlet grille and filter G2
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Circularity Profile
Instruction sheet
Environmental Disclosure
Brochure
Product Page Link
Product Data Sheet
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 36 W 50 Hz, 37 W 60 Hz. Free flow rate with standard filter of 300 m3/h at 50 Hz and 350 m3/h at 60 Hz. 268 x 248 x 116 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Products specifications

Attribute name Attribute value
Main
Input voltage 230 V 50/60 Hz
Range ClimaSys
Product name ClimaSys CV
Product or component type fan
Type of ventilation filter standard
Air flow free flow rate with standard filter: 350 m3/h at 60 Hz, free flow rate with standard filter: 300 m3/h at 50 Hz
[Us] rated supply voltage 145...253 V
Complementary
Noise level 55-56 dB
Bearing type ball
[In] rated current 0.17-0.17 A 50 Hz, 0.16-0.16 A 60 Hz
Colour outlet grille: grey (RAL 7035)
IP degree of protection IP54
Material outlet grille: injected thermoplastic (ASA PC)
Height 268 mm external:
Width 248 mm external:
Ambient air temperature for storage -40-70 °C
Cut-out dimensions 223 x 223 mm
Depth 116 mm external:
Net weight 1.3 kg
Device composition 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor
Maximum pressure 158 Pa flow rate 0 m³/h
Condition of use flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, outside temperature must be 5 °C lower than inside temperature, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean
Power range 37 W 60 Hz, 36 W 50 Hz
Ambient air temperature for operation -10-70 °C
Connections - terminals Faston connector
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.500 cm
Package 1 Width 25.500 cm
Package 1 Length 27.000 cm
Package 1 Weight 1.642 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 28.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.476 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 122.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 135.000 kg
