SKU:

NSYCR20WU1C

ClimaSys PTC heating resistance 20W, 12-24V insulate

Old price: $192.28 INC GST
$173.05 INC GST
Available for Shipping : 23-Jul-2025

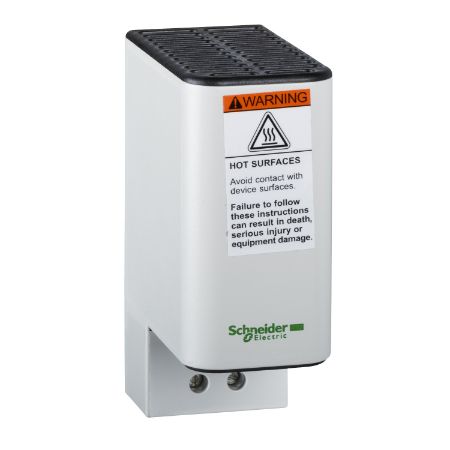

ClimaSys PTC heating resistance 20W, 12-24V insulate
Manufacturer: Schneider Electric
ClimaSys PTC heating resistance insulate. 20W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.

Products specifications

Attribute name Attribute value
Main
Input voltage 12...24 V DC
Range ClimaSys
Product name ClimaSys CR
Product or component type resistance heater
Power range 20 W
Electrical connection 4 screw terminals 2.5 mm²
Complementary
IP degree of protection IP20
Operating position vertical
Material cover: plastic, body: extruded aluminium
Height 98 mm external:
Width 38 mm external:
Electrical insulation class class II
Depth 75 mm external:
Condition of use air sealed enclosure, electrical protection is needed, heaters must be installed with a thermal controller
Fixing mode by clips
Mounting support 35 mm DIN rail
Ambient air temperature for operation -40-70 °C
Product certifications VDE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 8.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 204.000 g
