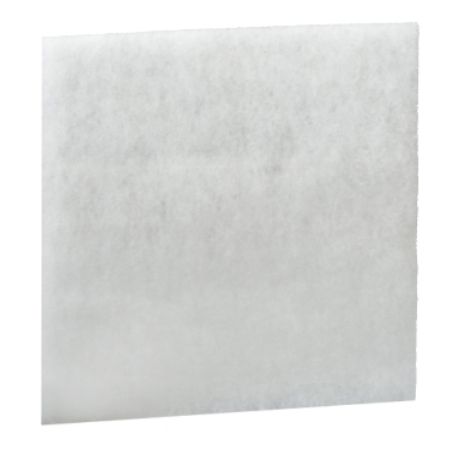

Picture of ClimaSys, Standard filter G2 for outlet grille or fan cut-out 291x291mm ext. dim 336x316x18mm
SKU:

NSYCAF291

ClimaSys, Standard filter G2 for outlet grille or fan cut-out 291x291mm ext. dim 336x316x18mm

Old price: $13.75 INC GST
$12.38 INC GST
This product has a minimum quantity of 5
Available for Shipping : 24-Jul-2025
ClimaSys, Standard filter G2 for outlet grille or fan cut-out 291x291mm ext. dim 336x316x18mm
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
Set of 5 G2 filters for ClimaSys CV, Prisma P and Prisma G enclosures The product is to be mounted between enclosure and outlet grille The width is 316mm The height is 336mm The filter is 8mm thick Cut-out dimensions is 291 x 291mm This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Range ClimaSys
Product name ClimaSys CA
Product or component type filter
Accessory / separate part category thermal management accessory
Range compatibility Prisma Prisma G, Prisma Prisma P, ClimaSys ClimaSys CV
Complementary
Accessory / separate part destination outlet grille 336 x 316 mm
Quantity per set set of 5
Height 336 mm
Width 316 mm
Mounting location between enclosure and outlet grille
Thickness 8 mm
Cut-out dimensions 291 x 291 mm cut-out
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 28.000 cm
Package 1 Length 28.000 cm
Package 1 Weight 12.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.000 cm
Package 2 Width 35.000 cm
Package 2 Length 33.000 cm
Package 2 Weight 85.000 g
Unit Type of Package 3 3
Number of Units in Package 3 50
Package 3 Height 40.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 1.576 kg
Unit Type of Package 4 4
Number of Units in Package 4 400
Package 4 Height 91.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 25.000 kg
