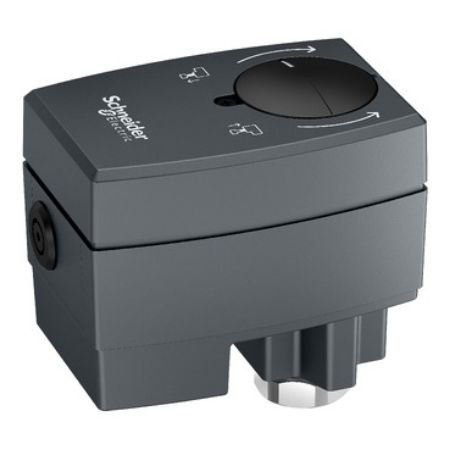

Picture of SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.
SKU:

MP300-SRU

SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.

$570.52 INC GST
Available for Shipping : 03-Sep-2025
SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.
  • For VP228E / VP229E PIBCV Valves
  • Without Power, the actuator spring drives the valve open
  • Multi-Signal input control
  • Suitable for use on hot media temperatures (120 °C / 248°F)
  • Sound Power level 40 dB (not recommended for hotel room applications)
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
MP300-SR actuators with Floating and Proportional control are low voltage motoric actuators for the SpaceLogic PIBCV DN1-32 Valves. The actuator has a spring return safety function that provides for an open or close valve in the event of power loss. The Spring return safety function should not be used for two position control. The advanced design incorporates load related ‘switchoff’ to ensure that actuators and valves are not exposed to overload. Power Supply: 24 Vac, +1…-15%. Closing Force: 3 N, Up - Normally Open. Grade of enclosure IP54. Max stroke 5.5 mm.

Products specifications

Attribute name Attribute value
Main
Product destination pressure independent control valves
Product or component type actuator
Power consumption in VA 9 VA AC
Targeted region Australia., North America., Asia Pacific., Europe
Complementary
Force N 300 N
Switch function No
[Us] rated supply voltage 24 V AC
Electrical insulation class class III
Control type automatic reset
Stroke length 5.5-5.5 mm
Analogue input range 0...10 V DC
Material polycarbonate: housing
Stroke running time 14 s
Force lbf 68 lbf
Actuator linear
Environment
IP degree of protection IP54
Relative humidity 0-95 % RH, non-condensing
Ambient air temperature for operation 0-55 °C
Control signal proportional/modulating, floating
Conduit connection conduit connector plate
Leads and connections terminal block
Actuator type electric
Actuator product range SmartX Actuator
Actuator product series MP300-SR
Power loss return spring return
Feedback signal 2...10 V DC, 0...10 V DC
Stroke auto calibration False
Additional features valve stroke length selection, LED status indicator
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.4 cm
Package 1 Width 13 cm
Package 1 Length 10.2 cm
Package 1 Weight 1 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 3.237 kg
