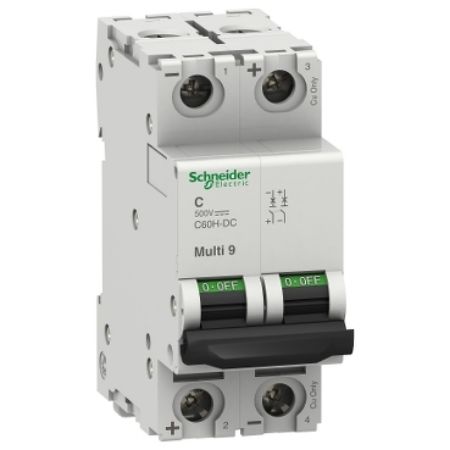

Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 5A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2)

Old price: $156.20 INC GST
$103.09 INC GST
Available for Shipping : 30-Sep-2025
Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 5A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2)
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Brochure
Declaration of conformity
Product Page Link
Product Data Sheet
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 5A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to GB 14048.2 standard and 20kA at 220VDC conforming to GB 14048.2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism improves its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 12VDC to 500VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.256kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name Attribute value
Main
Device short name C60H-DC
Device application distribution
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 5 kA AIR at 12...500 V DC conforming to UL 1077, 6 kA Icu at 500 V DC conforming to EN/IEC 60947-2, 10 kA Icu at 440 V DC conforming to EN/IEC 60947-2, 20 kA Icu at 220 V DC conforming to EN/IEC 60947-2, 6 kA Icu at 500 V DC conforming to GB 14048.2, 10 kA Icu at 440 V DC conforming to GB 14048.2, 20 kA Icu at 220 V DC conforming to GB 14048.2
Range Multi9
Number of protected poles 2
Curve code C
Range of product C60
Trip unit technology thermal-magnetic
Poles description 2P
Utilisation category category A conforming to EN/IEC 60947-2
Product name Multi9 C60H-DC
Product or component type miniature circuit-breaker
Breaking capacity code H
Network type DC
[In] rated current 5 A at 25 °C
Complementary
Product compatibility C60 auxiliary, C60 accessories
Tightening torque 2.5-2.5 N.m top or bottom
Provision for padlocking padlockable
Colour grey
Connection pitch 18 mm between phases
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Compatibility code C60H-DC
Mechanical durability 20000 cycles
Electrical durability 3000 cycles L/R = 2 ms
Mounting mode clip-on
Control type toggle
Wire stripping length 14 mm for top or bottom connection
Comb busbar and distribution block compatibility top or bottom: standard
Locking options description in position O
Earth-leakage protection without
Height 81 mm
[Ics] rated service breaking capacity 4.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V DC, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V DC, 15 kA 75 % conforming to EN/IEC 60947-2 - 220 V DC, 15 kA 75 % conforming to GB 14048.2 - 220 V DC, 7.5 kA 75 % conforming to GB 14048.2 - 440 V DC, 4.5 kA 75 % conforming to GB 14048.2 - 500 V DC
[Ue] rated operational voltage 12...500 V DC
Magnetic tripping limit 8.5 x In +/- 20 % AC
Depth 73 mm
Market segment residential, small commercial
Width 36 mm
Local signalling ON/OFF indication
[Ui] rated insulation voltage 500 V DC conforming to EN/IEC 60947-2
Connections - terminals tunnel type terminal (top or bottom) - 3 cable(s) 1-1 mm² (AWG 18) - flexible stranded, tunnel type terminal (top or bottom) - 2 cable(s) 1-10 mm² (AWG 18...AWG 8) - flexible with ferrule, tunnel type terminal (top or bottom) - 2 cable(s) 1-10 mm² (AWG 18...AWG 8) - flexible, tunnel type terminal (top or bottom) - 2 cable(s) 1-10 mm² (AWG 18...AWG 8) - rigid stranded, tunnel type terminal (top or bottom)1-16 mm² (AWG 18...AWG 6) - flexible with ferrule, tunnel type terminal (top or bottom)1-16 mm² (AWG 18...AWG 6) - flexible, tunnel type terminal (top or bottom)1-25 mm² (AWG 18...AWG 4) - rigid stranded
Net weight 0.256 kg
Limitation class 3 conforming to EN/IEC 60947-2
9 mm pitches 4
Mounting support DIN rail
Contact position indicator yes
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to EN/IEC 60947-2
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Product certifications IEC, CCC, UR
Standards EN/IEC 60947-2, GB 14048.2, UL 1077
Tropicalisation 2 conforming to GB 14048.2, 2 conforming to IEC 60068-2
Ambient air temperature for operation -25-70 °C
Operating altitude 2000 m
Overvoltage category IV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 7.5 cm
Package 1 Length 8.5 cm
Package 1 Weight 237.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 8.0 cm
Package 2 Width 9.0 cm
Package 2 Length 22.8 cm
Package 2 Weight 1.476 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 18.425 kg
