SKU:

METSEPM89M2600

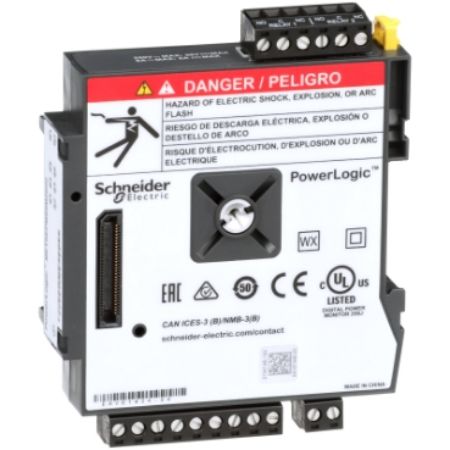

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

$747.12 INC GST
Available for Shipping : 23-Jul-2025
PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Manufacturer: Schneider Electric
Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.

Products specifications

Attribute name Attribute value
Main
Device application optional expansion module
Range PowerLogic
Product or component type I/O module
Range compatibility PowerLogic PowerLogic ION9000, PowerLogic PowerLogic ION7400, PowerLogic PowerLogic PM8000
Complementary
Number of outputs 2 form C relay output
Height 90.5 mm
Depth 90.5 mm
Width 22 mm
Number of inputs 6 digital
Net weight 140 g
Environment
IP degree of protection IP30 conforming to IEC 60529
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.800 cm
Package 1 Width 9.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 223.500 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.612 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 65.800 kg
