SKU:

METSECT5MC050

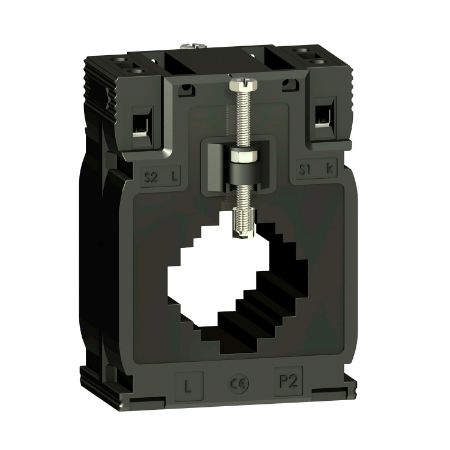

PowerLogic, Current transformer tropicalised DIN mount 500 5 for bars 10x40 20x32 25x25

Old price: $116.16 INC GST

Price: $98.74 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Product Selector

PowerLogic, Current transformer tropicalised DIN mount 500 5 for bars 10x40 20x32 25x25

Solid core IEC current transformers for varied application

compact size suitable for different sizes of conductors

tropicalized rating for harsh environmental condition

Well adpated CT as the accuracy class is better than rated accuracy

multiple secondary terminal options for different mounting profile

compliance with IEC standard for current transformer

Current Transformers for cable or bar profile

accessories for sturdy mounting in the system

adaptable for different conductor profile and primary current intensity

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

This current transformer, tropicalised for busbar and cable, has a line rated current of 500 A and a secondary current rating of 5 A. This current transformer do have a 41 mm x 41 mm opening. Compatible with a triple output for bar: 40.5 mm x 10.5 mm or 32.5 mm x 20.5 mm or 25.5 mm x 25.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 12 VA, class 0.5 at 10 VA
[In] rated current	500 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
Diameter	32 mm
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar and cable
Compatibility code	MC
Height	41 mm inner: , 95 mm outside:
Width	41 mm inner: , 70 mm outside:
Current transformer ratio	500/5
Mounting mode	clip-on, insulated locking screw, by screws
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	32.5 x 20.5, 25.5 x 25.5, 40.5 x 10.5
Sealing	without
Depth	65 mm total: , 45 mm frame:
Net weight	0.429 kg
[Ith] conventional free air thermal current	30 kA
Cable outer diameter	32 mm
[Ui] rated insulation voltage	3 kV
Mounting support	DIN rail, mounting plate, busbar
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	IEC 61869-2, VDE 0414
Ambient air temperature for operation	-25-60 °C
Product certifications	EAC, CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7 cm
Package 1 Width	9 cm
Package 1 Length	11.5 cm
Package 1 Weight	413 g
Unit Type of Package 2	2
Number of Units in Package 2	25
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	10.77 kg
