SKU:

METSECT5MB040

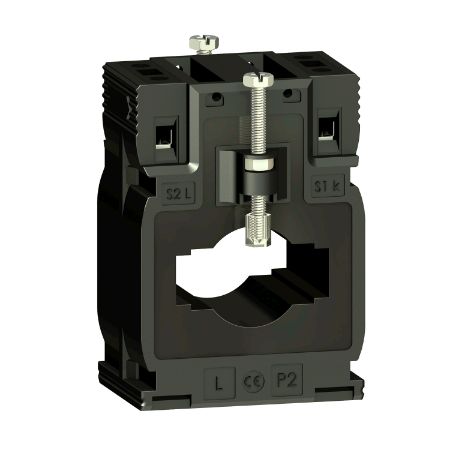

PowerLogic, Current transformer tropicalised DIN mount 400 5 cables d. 26 - bars 12x40 15x32

Old price: $105.38 INC GST

Price: $89.57 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Product Selector

PowerLogic, Current transformer tropicalised DIN mount 400 5 cables d. 26 - bars 12x40 15x32

Solid core IEC current transformers for varied application

compact size suitable for different sizes of conductors

tropicalized rating for harsh environmental condition

Well adpated CT as the accuracy class is better than rated accuracy

multiple secondary terminal options for different mounting profile

compliance with IEC standard for current transformer

Current Transformers for cable or bar profile

accessories for sturdy mounting in the system

adaptable for different conductor profile and primary current intensity

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

This current transformer, tropicalised for busbar and cable, has a line rated current of 400 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 26 mm. Compatible with a double output for bar: 40.5 mm x 12.5 mm or 32.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 6 VA, class 1 maximum power: 8 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 8 VA, class 0.5 at 6 VA
[In] rated current	400 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
Diameter	26 mm
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar and cable
Compatibility code	MB
Height	85 mm outside:
Width	60 mm outside:
Current transformer ratio	400/5
Mounting mode	clip-on, by screws, insulated locking screw
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	32.5 x 15.5, 40.5 x 12.5
Sealing	without
Depth	63 mm total: , 43 mm frame:
Net weight	0.348 kg
[Ith] conventional free air thermal current	24 kA
Cable outer diameter	26 mm
[Ui] rated insulation voltage	3 kV
Mounting support	DIN rail, busbar, mounting plate
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	VDE 0414, IEC 61869-2
Ambient air temperature for operation	-25-60 °C
Product certifications	CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.200 cm
Package 1 Width	7.000 cm
Package 1 Length	9.200 cm
Package 1 Weight	336.000 g
Unit Type of Package 2	2
Number of Units in Package 2	55
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	18.880 kg
