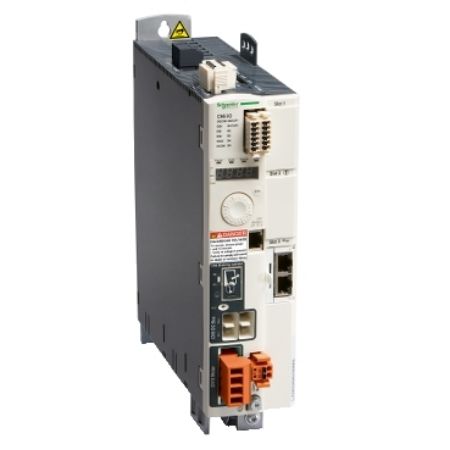

Picture of motion servo drive, Lexium 32, 10A, single phase, supply voltage 115 to 230V, 0.8 to 1.6kW
SKU:

LXM32SD30M2

motion servo drive, Lexium 32, 10A, single phase, supply voltage 115 to 230V, 0.8 to 1.6kW

$3,719.76 INC GST
Available for Shipping : 21-Aug-2025
Product Selector
motion servo drive, Lexium 32, 10A, single phase, supply voltage 115 to 230V, 0.8 to 1.6kW
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Brochure
Environmental Disclosure
Catalog
Circularity Profile
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 7kW. The motion servo drive features integrated EMC filter. It offers 2 capture discrete inputs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V, a continuous output current of 10A at 8kHz and a continuous power of 800W at 115V. It is furnished with RJ45 connector (labelled CN7) for Modbus. It offers electrical isolation between power and control. It provides Modbus and SERCOS III communication interface. It is an IP20 rated product. Its dimensions are 68mm (width) x 237mm (depth) x 270mm (height). It weighs 2.1kg. This product is certified by CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH (70mm, 2 motor stacks). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Device short name LXM32S
Continuous power 2200 W at 230 V, 800 W at 115 V
Continuous output current 10 A at 8 kHz
EMC filter integrated
Supply voltage limits 170-264 V, 85-132 V
Line current 12.7 A 135 % at 230 V, without line choke, 12.9 A 135 % at 115 V, without line choke, 14.1 A 86 % at 230 V, with external line choke of 2 mH, 9.9 A 72 % at 115 V, with external line choke of 2 mH
Range of product Lexium 32
[Us] rated supply voltage 200...240 V - 15...10 %, 100...120 V - 15...10 %
Supply frequency 50/60 Hz - 5...5 %
Nominal power 1.6 kW at 230 V 8 kHz, 0.8 kW at 115 V 8 kHz
Network number of phases single phase
Product or component type motion servo drive
Format of the drive book
Output current 3s peak 30 A at 230 V for 5 s, 15 A at 115 V for 5 s
Network frequency 47.5...63 Hz
Complementary
Response time on output 250 µs (DO) for discrete output(s)
Drive voltage drop coefficient 0.9
Discrete input number 2 capture discrete input(s)
Switching frequency 3 8 kHz
Switching frequency 2 8 kHz
Tightening torque CN8: 0.5-0.5 N.m
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Compatibility code LXM32S
Discrete input type capture (CAP terminals)
Supply voltage description single phase 115 V
Electrical connection terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Communication interface SERCOS III, integrated, Modbus, integrated
Connector type RJ45 (labelled CN7) for Modbus
Output current 3s peak 3 15 A at 115 V
Contact bounce time <= 1 ms for compliment of STO_A, compliment of STO_B
Number of inputs/outputs 4 DI + 2 CI + 3 DO
Output current 3s peak 2 15 A at 115 V
Marking CE
Transmission rate 9600, 19200, 38400 bps for bus length of 40-40 m for Modbus
Discrete input voltage 24 V DC for capture
Status LED 1 LED (red) servo drive voltage
Height 270 mm
Product compatibility servo motor BMH (70 mm, 2 motor stacks)
Sampling duration 0.25 ms
Safety level SIL 3 conforming to EN/IEC 61508
Discrete output type logic output(s) (DO)24 V DC
Network number of phases 1
Depth 237 mm
Overvoltage category III
Width 68 mm
Maximum leakage current 30 mA
Number of addresses 1-247 for Modbus
Safety function STO (safe torque off), integrated
Field weakening False
Emc filter compatibility type 021
Communication iinterface SERCOS III
Discrete output logic positive or negative (DO) conforming to EN/IEC 61131-2
Discrete output number 3
Discrete output voltage <= 30 V DC
Switching frequency 8 kHz
Braking current 50 mA
Net weight 2.1 kg
Signalling function display of faults 7 segments
Response time <= 5 ms compliment of STO_A, compliment of STO_B
Physical interface 2-wire RS485 multidrop for Modbus
Electrical isolation between power and control
Continuous output current 3 10 A
Continuous output current 2 10 A
Discrete input logic positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Type of cable single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR
Environment
Relative humidity Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
IP degree of protection IP20 conforming to EN/IEC 60529
Type of cooling integrated fan
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN/IEC 61800-5-1
Electromagnetic compatibility conducted EMC conforming to EN 55011 class A group 1
Ambient air temperature for operation 0-50 °C conforming to UL
Operating altitude <= 1000 m without derating
Vibration resistance 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic classes 3C1 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60028-2-27
Standards EN/IEC 61800-3
Product certifications CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.600 cm
Package 1 Width 27.500 cm
Package 1 Length 33.000 cm
Package 1 Weight 2.596 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.959 kg
