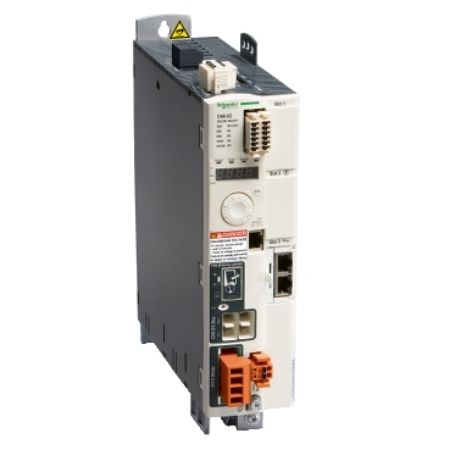

Picture of motion servo drive, Lexium 32, 9A, single phase, supply voltage 115 to 230V, 0.3 to 0.5kW
SKU:

LXM32MU90M2

motion servo drive, Lexium 32, 9A, single phase, supply voltage 115 to 230V, 0.3 to 0.5kW

$2,690.16 INC GST
Available for Shipping : 21-Aug-2025
Product Selector
motion servo drive, Lexium 32, 9A, single phase, supply voltage 115 to 230V, 0.3 to 0.5kW
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Brochure
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture, 2 safety, 4 logic discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 3A at 8kHz and a continuous power of 900W at 230V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. CANopen, CANmotion, Ethernet/IP, EtherCAT, Profibus, DeviceNet possible with option card. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.8kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

Products specifications

Attribute name Attribute value
Main
Device short name LXM32M
Continuous power 900 W at 230 V, 400 W at 115 V
Continuous output current 3 A at 8 kHz
EMC filter integrated
Supply voltage limits 170-264 V, 85-132 V
Line current 4.5 A 166 % at 230 V, without line choke, 5.4 A 159 % at 115 V, without line choke, 6.3 A 107 % at 230 V, with external line choke of 2 mH, 5.2 A 90 % at 115 V, with external line choke of 2 mH
Range of product Lexium 32
[Us] rated supply voltage 200...240 V - 15...10 %, 100...120 V - 15...10 %
Supply frequency 50/60 Hz - 5...5 %
Nominal power 0.5 kW at 230 V 8 kHz, 0.3 kW at 115 V 8 kHz
Network number of phases single phase
Product or component type motion servo drive
Format of the drive book
Output current 3s peak 9 A at 230 V for 5 s, 6 A at 115 V for 5 s
Network frequency 47.5...63 Hz
Complementary
Response time on output 250 µs (DO) for discrete output(s)
Drive voltage drop coefficient 0.9
Discrete input number 4 logic discrete input(s), 2 safety discrete input(s), 2 capture discrete input(s)
Protection type against short-circuits: outputs signal, against reverse polarity: inputs signal
Switching frequency 3 8 kHz
Switching frequency 2 8 kHz
Tightening torque CN10: 0.7-0.7 N.m, CN1: 0.7-0.7 N.m, CN8: 0.5-0.5 N.m
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Compatibility code LXM32M
Control signal type pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse train output (PTO) RS422 <500 kHz <100 m, servo motor encoder feedback
Discrete input type safety (compliment of STO_A, compliment of STO_B terminals), logic (DI terminals), capture (CAP terminals)
Supply voltage description single phase 115 V, single phase 230 V
Electrical connection terminal, clamping capacity: 5 mm², AWG 10 (CN10), terminal, clamping capacity: 5 mm², AWG 10 (CN1), terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Communication interface Profinet, with separated communication card, Modbus, with separated communication card, I/O, with separated communication card, DeviceNet, with separated communication card, Profibus, with separated communication card, EtherCAT, with separated communication card, Ethernet/IP, with separated communication card, CANopen, with separated communication card, Modbus, integrated
Connector type RJ45 (labelled CN7) for Modbus
Output current 3s peak 3 9 A at 230 V, 6 A at 115 V
Contact bounce time 0.25 µs...1.5 ms for DI, 2 µs for CAP, <= 1 ms for compliment of STO_A, compliment of STO_B
Number of inputs/outputs 4 DI + 2 CI + 3 DO
Output current 3s peak 2 9 A at 230 V, 6 A at 115 V
Marking CE
Transmission rate 9600, 19200, 38400 bps for bus length of 40-40 m for Modbus
Discrete input voltage 24 V DC for safety, 24 V DC for logic, 24 V DC for capture
Status LED 1 LED (red) servo drive voltage
Height 270 mm
Product compatibility servo motor BSH (55 mm, 2 motor stacks), servo motor BSH (55 mm, 1 motor stacks), servo motor BSH (55 mm, 3 motor stacks), servo motor BSH (70 mm, 1 motor stacks), servo motor BMH (70 mm, 1 motor stacks)
Sampling duration 0.25 ms, DI: 0.25 ms discrete
Safety level PL = e conforming to ISO 13849-1, SIL 3 conforming to EN/IEC 61508
Discrete output type logic output(s) (DO)24 V DC
Network number of phases 1
Depth 237 mm
Overvoltage category III
Width 68 mm
Maximum leakage current 30 mA
Number of addresses 1-247 for Modbus
Safety function SOS (safe operating stop), with separated eSM safety card, SLS (safe limited speed), with separated eSM safety card, SS2 (safe stop 2), with separated eSM safety card, SS1 (safe stop 1), with separated eSM safety card, STO (safe torque off), integrated
Field weakening False
Emc filter compatibility type 020
Communication iinterface pulse train
Discrete output logic positive or negative (DO) conforming to EN/IEC 61131-2
Discrete output number 3
Discrete output voltage <= 30 V DC
Switching frequency 8 kHz
Braking current 50 mA
Net weight 1.8 kg
Signalling function display of faults 7 segments
Response time <= 5 ms compliment of STO_A, compliment of STO_B
Physical interface 2-wire RS485 multidrop for Modbus
Electrical isolation between power and control
Continuous output current 3 3 A
Continuous output current 2 3 A
Discrete input logic positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1, positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1, positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Type of cable single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR
Environment
Relative humidity Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
IP degree of protection IP20 conforming to EN/IEC 61800-5-1, IP20 conforming to EN/IEC 60529
Type of cooling natural convection
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN/IEC 61800-5-1
Electromagnetic compatibility radiated EMC, category C3 conforming to EN/IEC 61800-3, radiated EMC, class A group 2 conforming to EN 55011, electrical fast transient/burst immunity test, level 4 conforming to EN/IEC 61000-4-4, 1.2/50 µs shock waves immunity test, level 3 conforming to EN/IEC 61000-4-5, susceptibility to electromagnetic fields, level 3 conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2, conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3, conducted EMC, category C2 conforming to EN/IEC 61800-3, conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3, conducted EMC, class A group 2 conforming to EN 55011, conducted EMC, class A group 1 conforming to EN 55011
Ambient air temperature for operation 0-50 °C conforming to UL
Operating altitude > 1000...3000 m with conditions, <= 1000 m without derating
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic classes 3C1 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60028-2-27
Standards EN/IEC 61800-3, EN/IEC 61800-5-1
Product certifications UL, TÜV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 27.500 cm
Package 1 Length 33.000 cm
Package 1 Weight 2.281 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.300 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 51.708 kg
