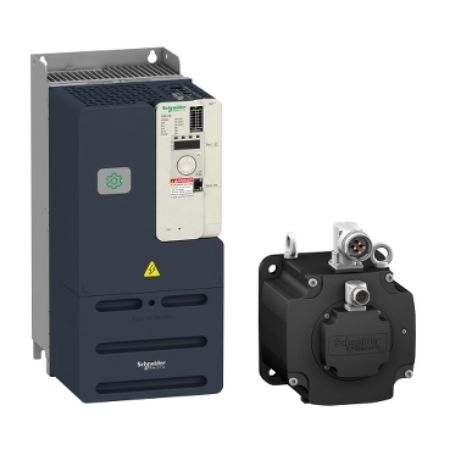

Picture of motion servo drive, Lexium 32, 100A, three phase, supply voltage 208 to 480V, 11kW
SKU:

LXM32MC10N4

motion servo drive, Lexium 32, 100A, three phase, supply voltage 208 to 480V, 11kW

$6,230.40 INC GST
Available for Shipping : 31-Aug-2025
Product Selector
motion servo drive, Lexium 32, 100A, three phase, supply voltage 208 to 480V, 11kW
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Brochure
Environmental Disclosure
Catalog
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 40A at 4kHz and a continuous power of 11000W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. It is an IP20 rated product. Its dimensions are 180mm (Width) x 240mm (Depth) x 385mm (Height). It weighs 9.6kg. This product is certified by CE and CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

Products specifications

Attribute name Attribute value
Main
Device short name LXM32M
Continuous power 11000 W at 480 V, 11000 W at 400 V
Continuous output current 40 A at 4 kHz
EMC filter integrated
Supply voltage limits 323-528 V
Line current 38.1 A 70 % at 480 V, with external line choke of 0.5 mH, 32 A 54 % at 480 V, with external line choke of 0.5 mH, 23.3 A 140 % at 480 V, without line choke
Range of product Lexium 32
[Us] rated supply voltage 380...480 V - 15...10 %
Supply frequency 50/60 Hz - 5...5 %
Nominal power 11 kW at 480 V 8 kHz, 11 kW at 400 V 4 kHz
Network number of phases three phase
Product or component type motion servo drive
Format of the drive book
Output current 3s peak 100 A at 480 V for 5 s
Network frequency 47.5...63 Hz
Complementary
Response time on output 250 µs (DO) for discrete output(s)
Drive voltage drop coefficient 0.95
Discrete input number 2 capture discrete input(s)
Protection type against reverse polarity: inputs signal
Switching frequency 3 4 kHz
Switching frequency 2 4 kHz
Tightening torque CN8: 3.8-3.8 N.m
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Compatibility code LXM32M
Control signal type pulse train output (PTO) RS422 <500 kHz <100 m
Discrete input type capture (CAP terminals)
Supply voltage description three phase 230 V
Electrical connection terminal, clamping capacity: 8 mm², AWG 8 (CN8)
Communication interface Profinet, with separated communication card, Modbus, integrated
Connector type RJ45 (labelled CN7) for Modbus
Output current 3s peak 3 100 A
Contact bounce time <= 1 ms for compliment of STO_A, compliment of STO_B
Number of inputs/outputs 4 DI + 2 CI + 3 DO
Output current 3s peak 2 100 A
Marking CE
Transmission rate 9600, 19200, 38400 bps for bus length of 40-40 m for Modbus
Discrete input voltage 24 V DC for capture
Status LED 1 LED (red) servo drive voltage
Height 385 mm
Product compatibility servo motor BMH (190 mm, 4 motor stacks), servo motor BMH (190 mm, 3 motor stacks), servo motor BMH (190 mm, 2 motor stacks), servo motor BMH (190 mm, 1 motor stacks)
Sampling duration 0.25 ms
Safety level SIL 3 conforming to EN/IEC 61508
Discrete output type logic output(s) (DO)24 V DC
Network number of phases 3
Depth 240 mm
Overvoltage category III
Width 180 mm
Maximum leakage current 30 mA
Number of addresses 1-247 for Modbus
Safety function STO (safe torque off), integrated
Field weakening False
Emc filter compatibility type 023
Communication iinterface pulse train
Discrete output logic positive or negative (DO) conforming to EN/IEC 61131-2
Discrete output number 3
Discrete output voltage <= 30 V DC
Switching frequency 4 kHz
Braking current 50 mA
Net weight 9.6 kg
Signalling function display of faults 7 segments
Response time <= 5 ms compliment of STO_A, compliment of STO_B
Physical interface 2-wire RS485 multidrop for Modbus
Electrical isolation between power and control
Continuous output current 3 40 A
Continuous output current 2 40 A
Discrete input logic positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Type of cable single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR
Environment
Relative humidity Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
IP degree of protection IP20 conforming to EN/IEC 60529
Type of cooling integrated fan
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN/IEC 61800-5-1
Electromagnetic compatibility conducted EMC, class A group 1 conforming to EN 55011
Ambient air temperature for operation 0-50 °C conforming to UL
Operating altitude <= 1000 m without derating
Vibration resistance 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic classes 3C1 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60028-2-27
Standards EN/IEC 61800-3
Product certifications CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.000 cm
Package 1 Width 33.000 cm
Package 1 Length 59.000 cm
Package 1 Weight 10.348 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 35.000 kg
