SKU:

LXD1D7

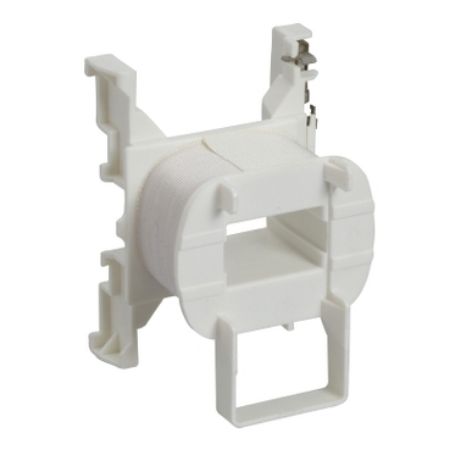

TeSys; TeSys Deca, contactor coil, LXD1, 42 V AC 50/60 Hz for 9… 38 A contactor

Old price: $99.22 INC GST

Price: $62.51 INC GST

Qty:

Available for Shipping : 24-Jul-2025

TeSys; TeSys Deca, contactor coil, LXD1, 42 V AC 50/60 Hz for 9… 38 A contactor

Spare coil for Deca contactor

New modern look & feel of all machines

Easier to install.

Digital customer experience for technical documents

Be the first to review this product

Manufacturer: Schneider Electric

Circularity Profile

Environmental Disclosure

Catalog

Product Page Link

Product Data Sheet

TeSys D replacement coil 42V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LXD1
Product compatibility	LC1D09...D38, LC1DT20...DT40, CAD
Mechanical durability	15 Mcycles
Maximum operating rate	3600 cyc/h 60 °C
Inductance of closed circuit	0.67 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	AC at 50/60 Hz
Range of product	TeSys Deca
[Uc] control circuit voltage	42 V AC 50/60 Hz
Average resistance	17 Ohm at 20 °C
Complementary
Heat dissipation	2-3 W at 50/60 Hz
Hold-in power consumption in VA	7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology	without built-in suppressor module
Inrush power in VA	70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits	operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight	0.07 kg
Ambient air temperature for operation	-5-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.500 cm
Package 1 Width	6.200 cm
Package 1 Length	4.000 cm
Package 1 Weight	72.000 g
Unit Type of Package 2	2
Number of Units in Package 2	100
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	7.639 kg
