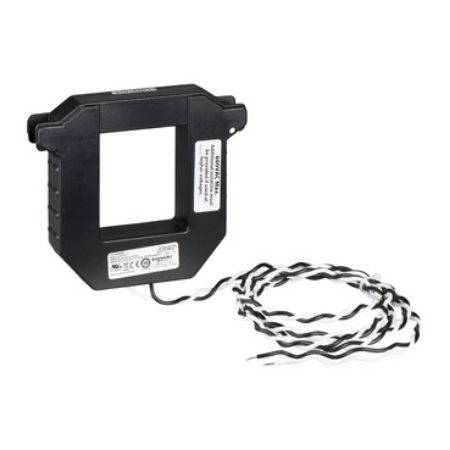

Picture of BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3
Picture of BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3
Picture of BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3
Picture of BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3
Picture of BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3
SKU:

LVCT00403S

BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3

Old price: $542.30 INC GST
$460.96 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
BCPM(Branch Circuit Power Meter), 400A Split core CT, 0.333V Output, SZ 3
  • power metering current transformer
  • UL recognised
  • Compatible with multi-circuit meter like BCPM or EM4900
  • Compatible with LVCT type panel meters
Be the first to review this product
Manufacturer: Veris Industries
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 400A circuit. 0.333 V output, size 3. Split core opening is 62 mm x 132 mm.

Products specifications

Attribute name Attribute value
Main
Device short name LVCT
Current transformer type split core balance
[In] rated current 400 A
Output voltage 0.333 V
Range PowerLogic
Product or component type current transformer
Accessory / separate part category measurement accessory
Electrical connection cable: 1.8 m (AWG 18) 600 V
Range of product PowerLogic
Product destination EM4900, EM4200, EM3500, iEM3000, Enercept, BCPMSC, BCPM
Network frequency 50/60 Hz
Complementary
Compatibility code LVCT
Measurement accuracy 1 % 10...100 %
Range compatibility Acti 9 Acti9 iEM3000 iEM3465 energy meter, Acti 9 Acti9 iEM3000 iEM3455 energy meter, PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter, PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter, PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter, PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter, PowerLogic PowerLogic EM4200 EM4236 energy meter, PowerLogic PowerLogic EM4200 EM4235 energy meter, PowerLogic PowerLogic EM3500 EM3561 energy meter, PowerLogic PowerLogic EM3500 EM3560 energy meter, PowerLogic PowerLogic EM3500 EM3555 energy meter, PowerLogic PowerLogic EM3500 EM3550 energy meter, PowerLogic PowerLogic EM3500 EM3502 energy meter, PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter, PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter, PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter, PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter, PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter, PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter
Environment
Height 132 mm external: , 73 mm internal:
Width 151 mm external: , 62 mm internal:
Relative humidity 95-95 %
Ambient air temperature for storage -40-70 °C
Depth 30 mm
Net weight 0.58 kg
Ambient air temperature for operation -15-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 21.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 863.600 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.360 kg
