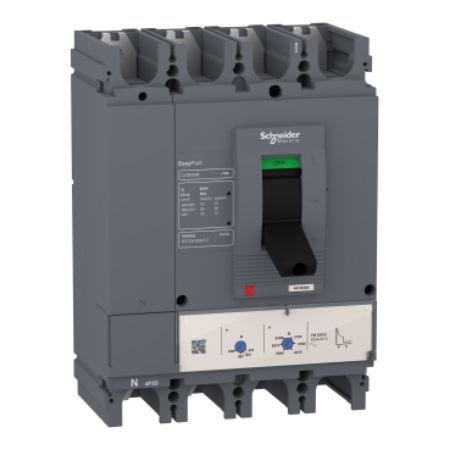

Picture of circuit breaker, EasyPact CVS630N, 50kA at 415VAC, 600A, TM-D trip unit, 4P3d
SKU:

LV563319

circuit breaker, EasyPact CVS630N, 50kA at 415VAC, 600A, TM-D trip unit, 4P3d

$2,758.80 INC GST
Available for Shipping : 10-Aug-2025
Product Selector
circuit breaker, EasyPact CVS630N, 50kA at 415VAC, 600A, TM-D trip unit, 4P3d
  • Outstanding durability with the features you need
  • Easy to order and stock
  • High quality: using advanced manufacturing methods and premium materials
  • Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards
  • Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact CVS630N is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 600A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630N is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Products specifications

Attribute name Attribute value
Main
Device short name CVS630N
Device application distribution
Protection type overload protection (thermal), short-circuit protection (magnetic)
Trip unit rating 600-600 A at 40 °C
Breaking capacity 42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Range EasyPact
Protected poles description 3D
Earth-leakage protection without
Range of product EasyPact CVS400...630
Trip unit name TM-D
Trip unit technology thermal-magnetic
Poles description 4P
Utilisation category category A
Product name EasyPact CVS
Product or component type circuit breaker
Network type AC
[In] rated current 600 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Compatibility code CVS630
Mechanical durability 15000 cycles
Electrical durability 4000 cycles 415 V In conforming to IEC 60947-2
Mounting mode fixed
Upside connection front
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Neutral protection setting no protection (3D)
Control type toggle
Downside connection front
Connection pitch 45 mm
Height 255 mm
[Ics] rated service breaking capacity 32 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Depth 110 mm
Width 185 mm
Neutral position left
Net weight 7.1 kg
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type fixed
Instantaneous pick-up adjustment range 4...8 x In
Breaking capacity code N
Thermal protection adjustment range 420-600 A
Mounting support backplate
Contact position indicator yes
Connections - terminals screw connection
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards IEC 60947-2, EN 60947-2
Product certifications GOST, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.400 cm
Package 1 Width 21.000 cm
Package 1 Length 30.000 cm
Package 1 Weight 8.039 kg
