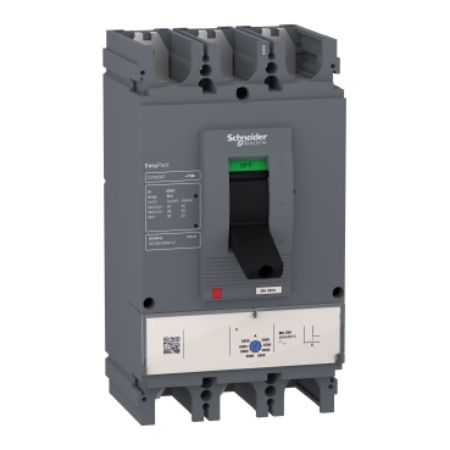

Picture of circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 320A, MA trip unit, 3P3d
SKU:

LV540550

circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 320A, MA trip unit, 3P3d

$1,604.46 INC GST
Available for Shipping : 10-Aug-2025
Product Selector
circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 320A, MA trip unit, 3P3d
  • Excellent breaking capacity ensures circuit safety
  • Certified for operation in heavily polluted environment
  • Respected for RoHs requirement as european environment directive EC/2002/95
  • Easy intallation: by blackplate or Din rail
  • Very high proteciton degree, also for extended rotary handle
  • Unique common accessories help standardisation of components
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This device is a rated current 320A circuit breaker from EasyPact CVS400F. The rated breaking capacity(Ics) is 36kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied MA trip unit for magnetic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width.255mm height,110mm depth,

Products specifications

Attribute name Attribute value
Main
Device short name CVS400F
Device application motor
Protection type short-circuit protection (magnetic)
Trip unit rating 320-320 A at 40 °C
Breaking capacity 30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Range EasyPact
Protected poles description 3D
Earth-leakage protection without
Range of product EasyPact CVS400...630
Trip unit name MA
Trip unit technology magnetic
Poles description 3P
Utilisation category category A
Product name EasyPact CVS
Product or component type circuit breaker
Network type AC
[In] rated current 320 A at 40 °C
Complementary
Short-time pick-up adjustment type Isd adjustable
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Compatibility code CVS400
Mechanical durability 15000 cycles
Electrical durability 6000 cycles 415 V In conforming to IEC 60947-2
Mounting mode fixed
Upside connection front
Control type toggle
Downside connection front
Connection pitch 45 mm
Height 255 mm
[Ics] rated service breaking capacity 23 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Depth 110 mm
Width 140 mm
[Isd] short-time pick-up adjustment range 6...13 x In
Net weight 4.7 kg
Instantaneous pick-up adjustment type Ii adjustable
Instantaneous pick-up adjustment range 6...13 x In
Breaking capacity code F
Mounting support backplate
Contact position indicator yes
Connections - terminals screw connection
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards IEC 60947-2, EN 60947-2
Product certifications IEC, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.400 cm
Package 1 Width 16.000 cm
Package 1 Length 30.000 cm
Package 1 Weight 6.039 kg
