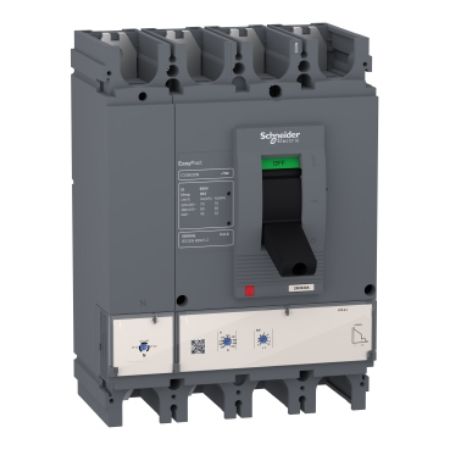

Picture of circuit breaker, EasyPact CVS400N, 50kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 4P4d
SKU:

LV540511

circuit breaker, EasyPact CVS400N, 50kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 4P4d

$2,274.80 INC GST
Available for Shipping : 07-Aug-2025
Product Selector
circuit breaker, EasyPact CVS400N, 50kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 4P4d
  • Good performance and cost-saving functionality for small and medium-sized buildings protection
  • Excellent breaking capacity ensures circuit safety
  • Safe to use: accompanied ETS 2.3 trip unit for long time and short time protections
  • Unique common accessories help standardisation of components
  • Compliant with multiple international standards
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Circularity Profile
CAD
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact CVS400N is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds an electronic ETS 2.3 trip unit, with 400A rating. ETS 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS400N is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Products specifications

Attribute name Attribute value
Main
Device short name CVS400N
Device application distribution
Protection type overload protection (long time), instantaneous short-circuit protection, short time short-circuit protection
Trip unit rating 400-400 A at 40 °C
Breaking capacity 42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Range EasyPact
Protected poles description 3D, 4D, 3D + N/2
Earth-leakage protection without
Range of product EasyPact CVS400...630
Trip unit name ETS 2.3
Trip unit technology electronic
Poles description 4P
Utilisation category category A
Product name EasyPact CVS
Product or component type circuit breaker
Network type AC
[In] rated current 400 A at 40 °C
Complementary
Short-time pick-up adjustment type Isd adjustable 9 settings
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Compatibility code CVS400
Mechanical durability 15000 cycles
Electrical durability 6000 cycles 415 V In conforming to IEC 60947-2
Mounting mode fixed
Upside connection front
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 160…400 A
Neutral protection setting 0.5 x Ir (3D + N/2), 1 x Ir (4D)
Short-time delay adjustment type fixed
Control type toggle
Downside connection front
Thermal memory yes
Connection pitch 45 mm
Height 255 mm
[Ics] rated service breaking capacity 32 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Depth 110 mm
Width 185 mm
Neutral position left
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
[tr] long-time delay adjustment range 200-200 s at 1.5 x Ir, 8-8 s at 6 x Ir, 5.5-5.5 s at 7.2 x Ir
Net weight 6.3 kg
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Instantaneous pick-up adjustment range 11 x In
Breaking capacity code N
Mounting support backplate
Trip unit protection functions LSoI
Contact position indicator yes
Connections - terminals screw connection
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN 60947-2, IEC 60947-2
Product certifications IEC, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.500 cm
Package 1 Width 20.500 cm
Package 1 Length 29.000 cm
Package 1 Weight 8.230 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 25.190 kg
