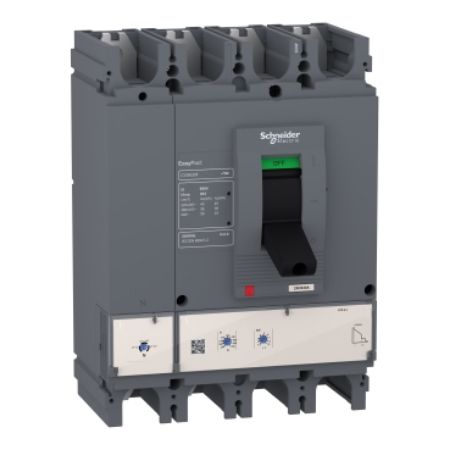

Picture of circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 4P4d
SKU:

LV540506

circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 4P4d

$2,132.02 INC GST
Available for Shipping : 03-Aug-2025
Product Selector
circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 400A, ETS 2.3 electronic trip unit, 4P4d
  • Good performance and cost-saving functionality for small and medium-sized buildings protection
  • Excellent breaking capacity ensures circuit safety
  • Safe to use: accompanied ETS 2.3 trip unit for long time and short time protections
  • Unique common accessories help standardisation of components
  • Compliant with multiple international standards
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Circularity Profile
CAD
Instruction sheet
Product Page Link
Product Data Sheet
EasyPact CVS400F is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds an electronic ETS 2.3 trip unit, with 400A rating. ETS 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS400F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
