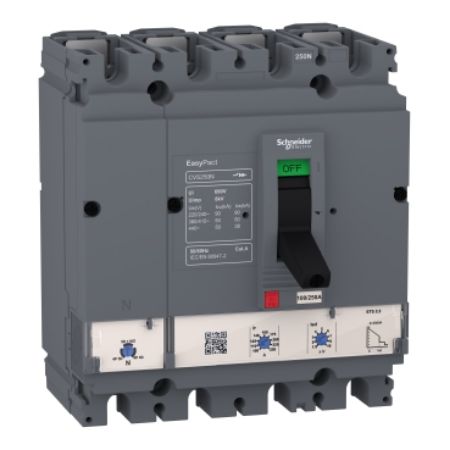

Picture of circuit breaker, EasyPact CVS250N, 50kA at 415VAC, ETS 2.2, 250A, 4P
SKU:

LV525510

circuit breaker, EasyPact CVS250N, 50kA at 415VAC, ETS 2.2, 250A, 4P

$2,107.82 INC GST
Available for Shipping : 09-Oct-2025
Product Selector
circuit breaker, EasyPact CVS250N, 50kA at 415VAC, ETS 2.2, 250A, 4P
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Circularity Profile
Catalog
CAD
Environmental Disclosure
Product Page Link
Product Data Sheet
This device is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a ETS 2.2 electric trip unit. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250N is compliant with international standards (IEC 60947, EN 60947, CCC, CB).

Products specifications

Attribute name Attribute value
Main
Trip unit technology electronic
Device short name CVS250N
Device application distribution
Protection type instantaneous short-circuit protection, overload protection (long time), short time short-circuit protection with fixed delay
Poles description 4P
Breaking capacity 80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Utilisation category category A
Range EasyPact
Product name EasyPact CVS
Product or component type circuit breaker
Protected poles description 4D, 3D + N/2, 3D
Network type AC
Earth-leakage protection without
Range of product EasyPact CVS100...250
Trip unit name ETS 2.2
[In] rated current 250 A at 40 °C
Complementary
Short-time pick-up adjustment type Isd adjustable 9 settings
Depth 86 mm
Width 140 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
[tsd] short-time delay adjustment range 0.02-0.02 s
Neutral position left
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
Compatibility code CVS250
Mechanical durability 20000 cycles
Electrical durability 10000 cycles 415 V In conforming to IEC 60947-2
Mounting mode fixed
Upside connection front
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 100...250 A
Neutral protection setting no protection (3D)
Short-time delay adjustment type fixed
[tr] long-time delay adjustment range 400-400 s at 1.5 x Ir, 16-16 s at 6 x Ir, 11-11 s at 7.2 x Ir
Control type toggle
Net weight 3.19 kg
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Downside connection front
Instantaneous pick-up adjustment range 3000 A
Breaking capacity code N
Mounting support backplate
Contact position indicator yes
Connection pitch 35 mm
Height 161 mm
Connections - terminals screw connection
[Ics] rated service breaking capacity 80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
IP degree of protection IP40
Standards IEC 60947-2, EN 60947-2
Ambient air temperature for operation -25-70 °C
Product certifications CB, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.100 cm
Package 1 Width 14.000 cm
Package 1 Length 8.600 cm
Package 1 Weight 2.608 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.852 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 98.816 kg
