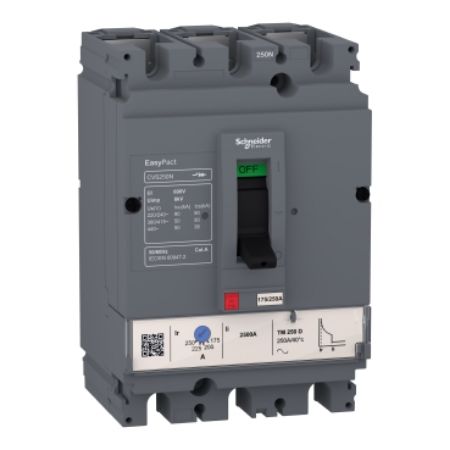

Picture of circuit breaker EasyPact CVS250N, 50kA at 415VAC, 250A rating thermal magnetic TM-D trip unit, 3P 3d
SKU:

LV525453

circuit breaker EasyPact CVS250N, 50kA at 415VAC, 250A rating thermal magnetic TM-D trip unit, 3P 3d

$1,435.06 INC GST
Available for Shipping : 28-Jul-2025
Product Selector
circuit breaker EasyPact CVS250N, 50kA at 415VAC, 250A rating thermal magnetic TM-D trip unit, 3P 3d
  • Very high proteciton degree, also for extended rotary handle
  • Excellent breaking capacity ensures circuit safety
  • Safe to use: embeds thermal-magnetic trip unit providing magnetic protection
  • Certified for operation in heavily polluted environment
  • Respected for RoHs requirement as european environment directive EC/2002/95
  • Easy installation without downgrading switchboard insulation
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
This device is a rated current 250A circuit breaker from EasyPact CVS250N. The rated breaking capacity(Ics) is 50kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied TM-D trip unit for thermal-magnetic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width,255mm height,110mm depth.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Trip unit rating 250-250 A at 40 °C
Earth-leakage protection without
Trip unit technology thermal-magnetic
Utilisation category category A
Network type AC
Device short name CVS250N
Protection type short-circuit protection (magnetic), overload protection (thermal)
Breaking capacity 80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Range EasyPact
Protected poles description 3D
Range of product EasyPact CVS100...250
Trip unit name TM-D
Poles description 3P
Product name EasyPact CVS
Product or component type circuit breaker
[In] rated current 250 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Compatibility code CVS250
Electrical durability 10000 cycles 415 V In conforming to IEC 60947-2
Long time pick-up adjustment type Ir adjustable
Downside connection front
Height 161 mm
[Ics] rated service breaking capacity 80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Net weight 1.7 kg
Long time delay adjustment type fixed
Thermal protection adjustment range 0-250 A
Mechanical durability 20000 cycles
Mounting mode fixed
Upside connection front
Long time pick-up adjustment range 0.7...1 x In
Short-time delay adjustment type fixed
Control type toggle
Connection pitch 35 mm
Depth 86 mm
Width 105 mm
Instantaneous pick-up adjustment type Ii fixed
Instantaneous pick-up adjustment range 2500 A
Breaking capacity code N
Mounting support backplate
Contact position indicator yes
Connections - terminals screw connection
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
Product certifications GOST, IEC
IP degree of protection IP40
Ambient air temperature for operation -25-70 °C
Standards EN 60947-2, IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 11.500 cm
Package 1 Length 19.200 cm
Package 1 Weight 1.945 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 20.290 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 120.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 338.640 kg
