SKU:

LV525442

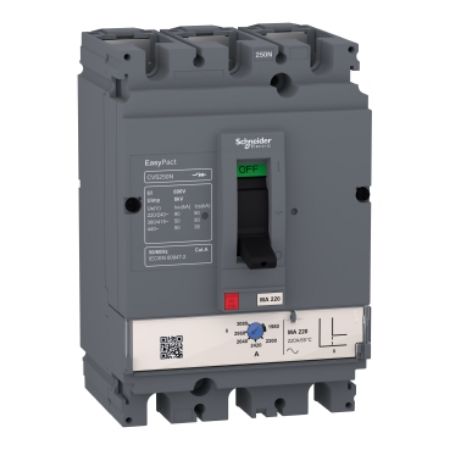

circuit breaker, EasyPact CVS250N, 50kA at 415VAC, 220A, MA trip unit, 3P3d

$1,321.32 INC GST

Qty:

Available for Shipping : 27-Jul-2025

Product Selector

circuit breaker, EasyPact CVS250N, 50kA at 415VAC, 220A, MA trip unit, 3P3d

Very high proteciton degree, also for extended rotary handle

Excellent breaking capacity ensures circuit safety

Safe to use: embeds thermal-magnetic trip unit providing magnetic protection

Certified for operation in heavily polluted environment

Respected for RoHs requirement as european environment directive EC/2002/95

Easy installation without downgrading switchboard insulation

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Environmental Disclosure

Catalog

Circularity Profile

CAD

Product Page Link

Product Data Sheet

This device is a rated current 220A circuit breaker from EasyPact CVS250N. The rated breaking capacity(Ics) is 50kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied TM-D trip unit for thermal-magnetic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width.255mm height,110mm depth,

Products specifications

Attribute name	Attribute value
Main
Device short name	CVS250N
Device application	motor
Protection type	short-circuit protection (magnetic)
Trip unit rating	220-220 A at 65 °C
Breaking capacity	80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Range	EasyPact
Protected poles description	3D
Earth-leakage protection	without
Range of product	EasyPact CVS100...250
Trip unit name	MA
Trip unit technology	magnetic
Poles description	3P
Utilisation category	category A
Product name	EasyPact CVS
Product or component type	circuit breaker
Network type	AC
[In] rated current	220 A at 65 °C
Complementary
Short-time pick-up adjustment type Isd	adjustable
[Uimp] rated impulse withstand voltage	8 kV conforming to EN/IEC 60947-2
Compatibility code	CVS250
Mechanical durability	20000 cycles
Electrical durability	10000 cycles 415 V In conforming to IEC 60947-2
Mounting mode	fixed
Upside connection	front
Control type	toggle
Downside connection	front
Connection pitch	35 mm
Height	161 mm
[Ics] rated service breaking capacity	80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Depth	86 mm
Width	105 mm
[Isd] short-time pick-up adjustment range	9...14 x In
Net weight	1.7 kg
Instantaneous pick-up adjustment type Ii	adjustable
Instantaneous pick-up adjustment range	9...14 x In
Breaking capacity code	N
Mounting support	backplate
Contact position indicator	yes
Connections - terminals	screw connection
Network frequency	50/60 Hz
Environment
Ambient air temperature for storage	-50-85 °C
IP degree of protection	IP40
Ambient air temperature for operation	-25-70 °C
Electrical shock protection class	class II
Standards	IEC 60947-2, EN 60947-2
Product certifications	IEC, GOST
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.500 cm
Package 1 Width	13.500 cm
Package 1 Length	19.000 cm
Package 1 Weight	1.944 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	15.972 kg
Unit Type of Package 3	3
Number of Units in Package 3	64
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	139.776 kg
