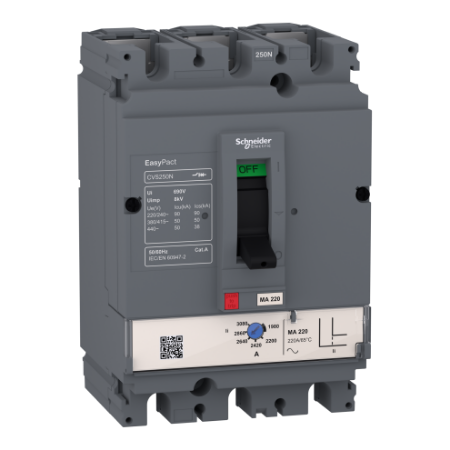

Picture of CVS250B TM200D 3P3D (sale in AU only)
SKU:

LV525305

CVS250B TM200D 3P3D (sale in AU only)

$1,022.45 INC GST
Available for Shipping : 24-Jul-2025
CVS250B TM200D 3P3D (sale in AU only)
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name CVS250B
Device application distribution
Protection type overload protection (thermal), short-circuit protection (magnetic)
Trip unit rating 200-200 A at 40 °C
Breaking capacity 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Range EasyPact
Protected poles description 3D
Earth-leakage protection without
Range of product EasyPact CVS100...250
Trip unit name TM-D
Trip unit technology thermal-magnetic
Poles description 3P
Utilisation category category A
Product name EasyPact CVS
Product or component type circuit breaker
Network type AC
[In] rated current 200 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Compatibility code CVS250
Mechanical durability 20000 cycles
Electrical durability 10000 cycles 415 V In conforming to IEC 60947-2
Mounting mode fixed
Upside connection front
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Control type toggle
Downside connection front
Connection pitch 35 mm
Height 161 mm
[Ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Depth 86 mm
Width 105 mm
Net weight 2 kg
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Instantaneous pick-up adjustment range 2000 A
Breaking capacity code B
Thermal protection adjustment range 140-200 A
Mounting support backplate
Contact position indicator yes
Connections - terminals screw connection
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN 60947-2, IEC 60947-2
Product certifications GOST, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.1 cm
Package 1 Width 10.5 cm
Package 1 Length 8.6 cm
Package 1 Weight 1.92 kg
