SKU:

LV516451

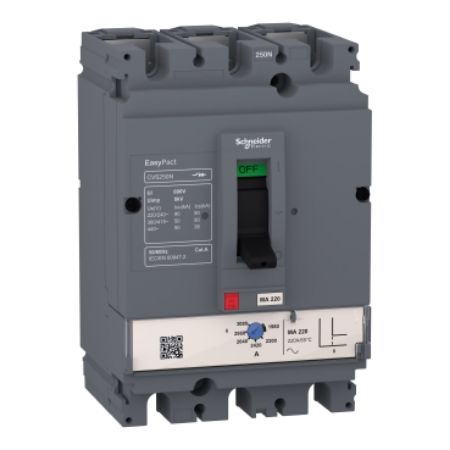

circuit breaker, EasyPact CVS250N, 50kA at 415VAC, 150A, MA trip unit, 3P3d

$972.84 INC GST

Available for Shipping : 12-Aug-2025

Product Selector

circuit breaker, EasyPact CVS250N, 50kA at 415VAC, 150A, MA trip unit, 3P3d

Excellent breaking capacity ensures circuit safety

Safe to use: embeds thermal-magnetic trip unit

Certified for operation in heavily polluted environment

Easy installation without downgrading switchboard insulation

Very high proteciton degree, also for extended rotary handle

Unique common accessories help standardisation of components

Be the first to review this product

Manufacturer: Schneider Electric

Environmental Disclosure

Instruction sheet

Circularity Profile

Catalog

CAD

Product Page Link

Product Data Sheet

This device is a rated current 150A circuit breaker from EasyPact CVS250N. The rated breaking capacity(Ics) is 50kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied TM-D trip unit for thermal-magnetic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width.255mm height,110mm depth,

Products specifications

Attribute name	Attribute value
Main
Trip unit technology	magnetic
Device short name	CVS160N
Device application	motor
Protection type	short-circuit protection (magnetic)
Poles description	3P
Trip unit rating	150-150 A at 65 °C
Breaking capacity	80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Utilisation category	category A
Range	EasyPact
Product name	EasyPact CVS
Product or component type	circuit breaker
Protected poles description	3D
Network type	AC
Earth-leakage protection	without
Range of product	EasyPact CVS100...250
Trip unit name	MA
[In] rated current	150 A at 65 °C
Complementary
Short-time pick-up adjustment type Isd	adjustable
Depth	86 mm
Width	105 mm
[Uimp] rated impulse withstand voltage	8 kV conforming to EN/IEC 60947-2
[Isd] short-time pick-up adjustment range	9...14 x In
Compatibility code	CVS160
Mechanical durability	25000 cycles
Electrical durability	12000 cycles 415 V In conforming to IEC 60947-2
Mounting mode	fixed
Upside connection	front
Control type	toggle
Net weight	1.5 kg
Instantaneous pick-up adjustment type Ii	adjustable
Downside connection	front
Instantaneous pick-up adjustment range	9...14 x In
Breaking capacity code	N
Mounting support	backplate
Contact position indicator	yes
Connection pitch	35 mm
Height	161 mm
Connections - terminals	screw connection
[Ics] rated service breaking capacity	80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency	50/60 Hz
Environment
Ambient air temperature for storage	-50-85 °C
Electrical shock protection class	class II
IP degree of protection	IP40
Standards	EN 60947-2, IEC 60947-2
Ambient air temperature for operation	-25-70 °C
Product certifications	IEC, GOST
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.000 cm
Package 1 Width	11.000 cm
Package 1 Length	18.000 cm
Package 1 Weight	1.773 kg
Unit Type of Package 2	2
Number of Units in Package 2	9
Package 2 Height	23.000 cm
Package 2 Width	38.000 cm
Package 2 Length	49.000 cm
Package 2 Weight	15.570 kg
