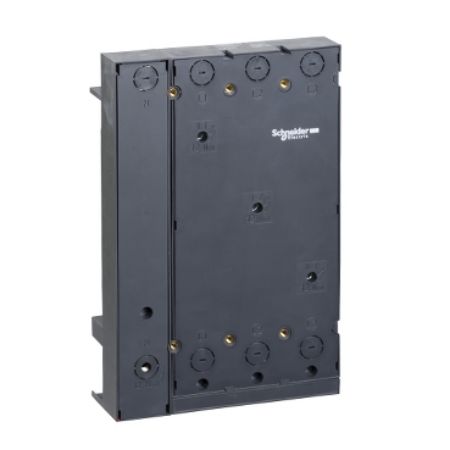

PLATINE COMPACT NSX 400-630 4P IEC/UL FOR 60 BUSBARS INTERAXIS

Old price: $717.20 INC GST
$451.84 INC GST
Available for Shipping : 12-Aug-2025
PLATINE COMPACT NSX 400-630 4P IEC/UL FOR 60 BUSBARS INTERAXIS
  • For ComPacT NSX Circuit Breakers
  • Mounting plate for 4P ComPacT NSX circuit breakers
  • With size dimensions (139 x 270 x 63) mm
  • Set of 1
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
The NSX mounting plate system for busbar simplifies the installation of 4 poles NSX 400-630 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. Depending on the cross section of the bars, the busbar associated to terminals can withstand a maximum current of 630A. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.

Products specifications

Attribute name Attribute value
Main
Device short name LA9Z
Number of ways 1 way
Range Linergy
Product name BZ
Product or component type adaptors for busbar systems
Range of product TeSys
Complementary
Product compatibility NSX400...630
Depth 63 mm
Range compatibility ComPact, Spacial, Prisma PH, Prisma P, Prisma G
Width 184 mm
Colour anthracite grey
Poles description 4P
[Ui] rated insulation voltage 690 V
Permissible current 630 A - busbar cross section: 30 x 10 mm, 520 A - busbar cross section: 20 x 10 mm, 360 A - busbar cross section: 12 x 10 mm, 450 A - busbar cross section: 30 x 5 mm, 400 A - busbar cross section: 25 x 5 mm, 320 A - busbar cross section: 20 x 5 mm, 250 A - busbar cross section: 15 x 5 mm, 200 A - busbar cross section: 12 x 5 mm
Height 284 mm
Busbar pitch 60 mm
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 20.0 cm
Package 1 Length 33.0 cm
Package 1 Weight 2.905 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.23 kg
