SKU:

LV429251

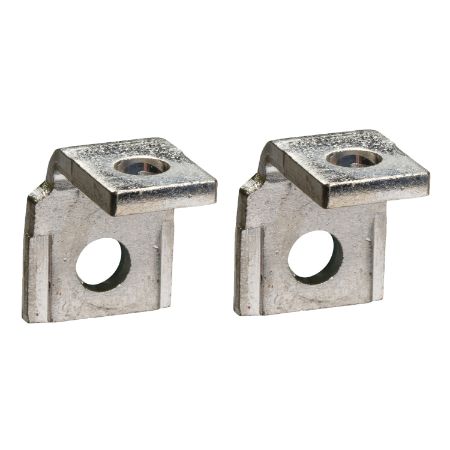

Terminal extensions, ComPacT NSX 100/160/250 DC PV, straight, set of 2 parts

Old price: $34.87 INC GST
$30.69 INC GST
Available for Shipping : 09-Sep-2025
Terminal extensions, ComPacT NSX 100/160/250 DC PV, straight, set of 2 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Manufacturer: Schneider Electric
These accessories are straight terminal extensions for Compact NSX 100/160/250. These terminal extensions have anti-rotation ribs and can be attached to the standard terminals. The rated current is up to 250 A. These terminal extensions are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 2 parts.

Products specifications

Attribute name Attribute value
Main
Mounting position straight
Quantity per set 2
Poles description 2P
Range ComPacT
Product or component type terminal extension
Accessory / separate part category connection accessory
Range compatibility ComPact ComPacT NSX DC PV NSX250 DC PV, ComPact ComPacT NSX DC PV NSX160 DC PV, ComPact ComPacT NSX DC PV NSX100 DC PV
Breaking capacity code S
Range of product ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC PV new generation
Complementary
[In] rated current 250-250 A
Connection pitch 35 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.0 cm
Package 1 Width 9.5 cm
Package 1 Length 27.0 cm
Package 1 Weight 165.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 16.987 kg
