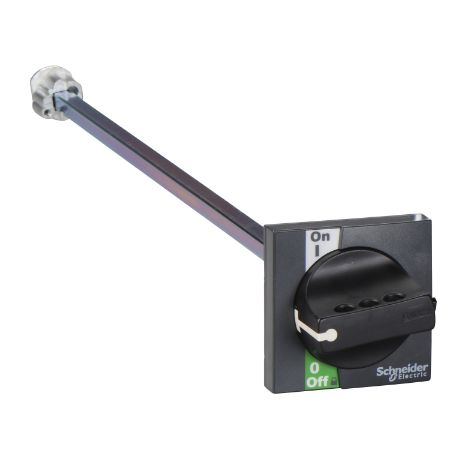

Picture of extended rotary handle, Compact INS40 to INS60, IP55, IK08, black handle, front control
SKU:

LV428941

extended rotary handle, Compact INS40 to INS60, IP55, IK08, black handle, front control

Old price: $170.06 INC GST
$139.45 INC GST
Available for Shipping : 23-Jul-2025
extended rotary handle, Compact INS40 to INS60, IP55, IK08, black handle, front control
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
It is an extended black rotary handle for Compact INS40 to INS160 switch disconnectors. It is suitable for isolation and it is used for standard applications. This rotary handle is a front control accessory. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The degrees of protection are IP55 and IK08. It may be locked in the OFF position by one to three padlocks, hasp diameter 5 to 8 mm (not supplied).

Products specifications

Attribute name Attribute value
Main
Device short name rotary handle
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Range of product INS40...160
Rotary handle mounting style extended
Complementary
Rotary handle padlocking padlock in OFF position
Rotary handle mounting location front
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.700 cm
Package 1 Width 10.700 cm
Package 1 Length 48.700 cm
Package 1 Weight 430.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 3.698 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 90.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 56.376 kg
