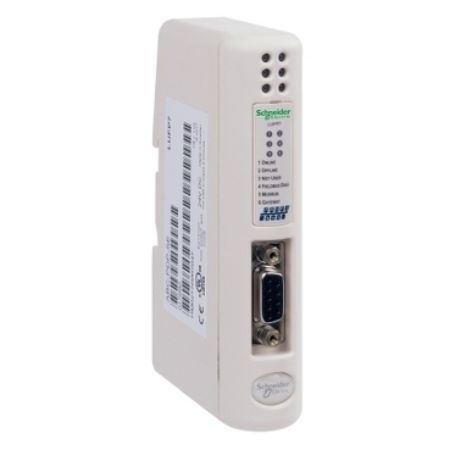

Picture of Communication gateway, TeSys Ultra, 24VDC +/- 10%, 1Profibus DP SUB-D9, 1 RJ45 Modbus
SKU:

LUFP7

Communication gateway, TeSys Ultra, 24VDC +/- 10%, 1Profibus DP SUB-D9, 1 RJ45 Modbus

Old price: $2,866.60 INC GST
$2,436.61 INC GST
Available for Shipping : 12-Aug-2025
Communication gateway, TeSys Ultra, 24VDC +/- 10%, 1Profibus DP SUB-D9, 1 RJ45 Modbus
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LUF
Product compatibility TeSys U starter-controllers, ATS48, ATV31
Range TeSys
Range of product TeSys U
Product or component type communication gateway
Complementary
[Us] rated supply voltage 24 V DC +/- 10 %
Compatibility code LUF
Bus type Modbus, Profibus DP
Local signalling LED front panel
Connector type RJ45 to a PC, RJ45 Modbus, female SUB-D 9 field bus
Net weight 0.245 kg
Services monitoring - bus type: Profibus DP - functions available: 122 configurable words, configuration and adjustment - bus type: Fipio - functions available: by gateway mini messaging facility, command - bus type: Profibus DP - functions available: 122 configurable words
Maximum number of connections <= 8 Modbus slaves
Current consumption 280 mA maximum, 100 mA typical
Environment
IP degree of protection IP20
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility electromagnetic immunity conforming to IEC 61000-6-2, electromagnetic emission conforming to IEC 50081-2
Ambient air temperature for installation 5-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.200 cm
Package 1 Width 13.700 cm
Package 1 Length 5.800 cm
Package 1 Weight 220.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.689 kg
