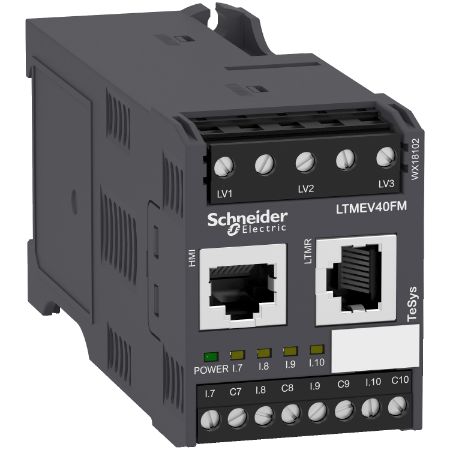

Picture of Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller
SKU:

LTMEV40FM

Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller

Old price: $864.60 INC GST
$734.91 INC GST
Available for Shipping : 06-Aug-2025
Extension module, TeSys T, 4 inputs, 100 to 240VAC, for LTMR controller
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Declaration of conformity
Instruction sheet
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Products specifications

Attribute name Attribute value
Main
Device short name LTME
Device application equipment monitoring and control
[Us] rated supply voltage 100...240 V AC 50/60 Hz
Range TeSys
Product name TeSys T
Product or component type extension module
Supply via the controller
Range compatibility TeSys TeSys T LTMR motor controller
Complementary
Metering type power factor, frequency, reactive power Q, Q1, Q2, Q3, voltage U21, U32, U13, V1, V2, V3, calculated active and reactive energy (+/- W.h, +/- VAR.h), active power P, P1, P2, P3, imbalance voltage
Maximum operating frequency 2 Hz
Depth 120.7 mm
Tightening torque control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Overvoltage category III
Width 45 mm
Compatibility code LTME
[Ui] rated insulation voltage 690 V conforming to UL 508, 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1
Current state 0 guaranteed logic input: 0...40 V and 2...15 mA for 25 ms
Measurement accuracy 5 % active and reactive power, 3 % power factor, 1 % voltage (100...830 V)
Electromagnetic compatibility control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
[Uimp] rated impulse withstand voltage 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1, 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1
Net weight 0.21 kg
Current state 1 guaranteed logic input: 79...264 V and <= 15 mA for 25 ms
Input current 7.5 mA at 240 V, 3.1 mA at 100 V
Connections - terminals control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end
Maximum operating rate 1800 cyc/h
Logic input number 4
Pollution degree 3
Connection pitch 5.08 mm
Height 61 mm
Contacts type and composition without
Environment
IP degree of protection IP20
Fire resistance 960 °C conforming to UL 94, 650 °C conforming to EN/IEC 60695-2-12
Operating altitude <= 2000 m without derating
Protective treatment TH conforming to EN/IEC 60068, 48 h conforming to EN/IEC 60070-2-11, 12 x 24 hour cycles conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -40-80 °C
Standards EN 60947-4-1, UL 508, IEC 60947-4-1, IACS E10, CSA C22.2 No 14
Ambient air temperature for operation -20-60 °C
Mechanical robustness vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Product certifications ABS, CCC, CSA, C-Tick, KERI, RINA, BV, DNV, UL, GL, RMRoS, EAC, NOM, ATEX, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 7.200 cm
Package 1 Length 13.600 cm
Package 1 Weight 202.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.385 kg
