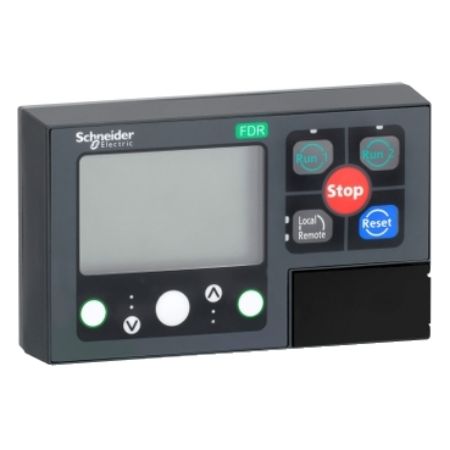

Picture of Operator control unit, TeSys T, with fast device replacement service
SKU:

LTMCUF

Operator control unit, TeSys T, with fast device replacement service

Old price: $796.40 INC GST
$676.94 INC GST
Available for Shipping : 24-Jul-2025
Operator control unit, TeSys T, with fast device replacement service
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Environmental Disclosure
Catalog
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operator control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has Fast Device Replacement Service (FDR). This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller.

Products specifications

Attribute name Attribute value
Main
Device short name LTMCUF
Display type backlit LCD
Control button type 10 push-button
Local signalling 4 LEDs
Function available FDR (fast device replacement)
Device connection connection to a PC, RJ45 connector on front, connection to a LTM R controller, RJ45 connector on rear
Range TeSys
Product or component type operator control unit
Range compatibility TeSys T LTMR motor controller
Complementary
Depth 50 mm
Width 117 mm
Compatibility code LTMCUF
Maximum supply current 140 mA
Mounting mode flush-mounted
Electromagnetic compatibility fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4, surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2
IP degree of protection IP20 (rear) conforming to EN/IEC 60947-4-1, IP54 (front) conforming to EN/IEC 60947-4-1
Net weight 0.4 kg
Supply via the controller
Power dissipation 1 W
Standards CSA C22.2 No 60947-4-1, EN/IEC 61131-2, UL 60947-4-1A
Height 70 mm
Product certifications C-Tick, UL, CE, NOM, EAC, CSA
Environment
Fire resistance 650 °C conforming to EN/IEC 60947-1
Protective treatment TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -40-80 °C
Relative humidity 15-95 %
Flame retardance V2 conforming to UL 94
Ambient air temperature for operation -20-60 °C
Mechanical robustness vibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 7.800 cm
Package 1 Length 13.600 cm
Package 1 Weight 268.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.160 kg
