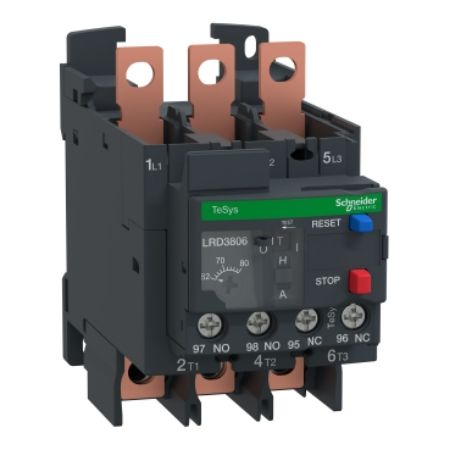

Picture of Thermal overload relay,TeSys Deca,62-80A,1NO+1NC,class10A,lugs ring terminal
SKU:

LRD3806

Thermal overload relay,TeSys Deca,62-80A,1NO+1NC,class10A,lugs ring terminal

Old price: $465.30 INC GST
$293.14 INC GST
Available for Shipping : 21-Aug-2025
Thermal overload relay,TeSys Deca,62-80A,1NO+1NC,class10A,lugs ring terminal
  • Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
User guide
Environmental Disclosure
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys LRD thermal overload relay, 80A/690V, thermal setting range 62-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LRD
Product compatibility LC1D80A
[Ui] rated insulation voltage power circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 600 V conforming to UL 60947-4-1, power circuit: 690 V conforming to IEC 60947-4-1
Range TeSys Deca, TeSys
Thermal overload class class 10A conforming to IEC 60947-4-1
Product name TeSys Deca, TeSys LRD
Product or component type differential thermal overload relay
Relay application motor protection
Network type DC, AC
Thermal protection adjustment range 62-80 A
Complementary
Temperature compensation -20-60 °C
Depth 123 mm
Width 55 mm
Colour grey (SE GREY 6)
Compatibility code LRD
Mounting support direct mounting under contactor, rail, with terminal block LAD96560 on top, plate, with terminal block LAD96560 on top
Control type blue push-button: reset, red push-button: stop
Tightening torque power circuit: 6 N.m - on bars M6, power circuit: 6 N.m - on ring lugs M6, control circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Permissible current 0.06 A at 440 V DC-13 for signalling circuit, 0.95 A at 380 V AC-15 for signalling circuit
Power dissipation per pole 4.8 W
[Uimp] rated impulse withstand voltage 6 kV
Net weight 0.375 kg
Associated fuse rating 4 A BS for signalling circuit, 4 A gG for signalling circuit
[Ue] rated operational voltage 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Phase failure sensitivity tripping current 130 % of Ir on two phase, the last one at 0
Connections - terminals power circuit: direct terminal link on top, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible, power circuit: bars 6 x 13.5 mm, power circuit: ring lugs external diameter: 16.5 mm, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end
Connection pitch 17.5 mm
[Ith] conventional free air thermal current 5 A for signalling circuit
Auxiliary contact composition 1 NO + 1 NC
Height 70 mm
Network frequency 0...400 Hz
Environment
Ambient air temperature for storage -60-70 °C
Flame retardance V1 conforming to UL 94
IP degree of protection IP20 conforming to IEC 60529
Dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1
Ambient air temperature for operation -20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstand conforming to IACS E10
Standards GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustness vibrations: 3 GN conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Product certifications UKCA, EU-RO MR, RMRS, DNV-GL, EAC, CCC, CSA, UL, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.250 cm
Package 1 Width 11.000 cm
Package 1 Length 14.000 cm
Package 1 Weight 362.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.594 kg
Unit Type of Package 3 3
Number of Units in Package 3 192
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 81.504 kg
