SKU:

LRD365L6

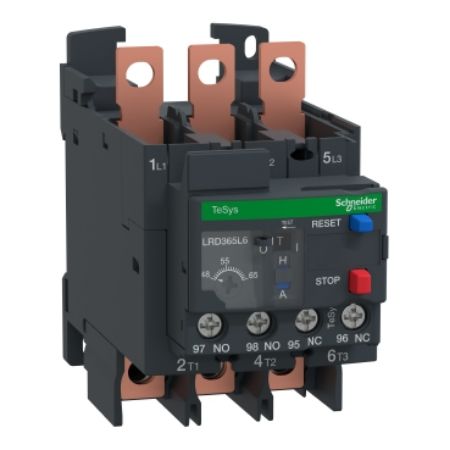

Thermal overload relay,TeSys Deca,48-65A,1NO+1NC,class 20,EverLink lugs ring

Old price: $689.70 INC GST
$434.51 INC GST
Available for Shipping : 19-Aug-2025
Thermal overload relay,TeSys Deca,48-65A,1NO+1NC,class 20,EverLink lugs ring
  • Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads.
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Multiple international certifications
Manufacturer: Schneider Electric
TeSys LRD thermal overload relay, 65A/690V, thermal setting range 48-65A, tripping class 20, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
